Buy ifm Electronic OBF500 FO amplifier OBF500 1 pc(s)

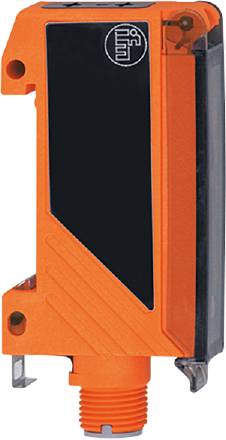

Image similar

Product type

FO amplifier

Type

OBF500

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 36 x 15 x 60
Display: Switching status: 1 x LED, yellow; operation: 1 x LED, green; unsafe area: 1 x LED, red; operating reserve: 4 x LED, green
Ambient temperature-1 [°C]: -25...60
Design: Fibre optic amplifier for acrylic fiber optic cables
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
Special feature: Function control output
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical design: PNP/NPN; (automatic load detection PNP/NPN)
Function control output: Yes
Housing: Square
Weight [g]: 47,900
Short-circuit protection: Yes
Type of light: Red light
max. Voltage drop function control output [V]: 2.5
max. Voltage drop switch output DC [V]: 2.5
MTTF: 806
Test mark (special cases): CCC
Range/width adjustable: Yes
Range [m]: 0...2; (one-way light barrier)
Switching frequency DC [Hz]: 3000
Protection system: IP 65
Protection class III
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 50
Load capacity function control output [mA]: 10
Scan width [mm]: 0...100; (reflective light sensor)
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 630
Time function [s]: 0.001...0.09
