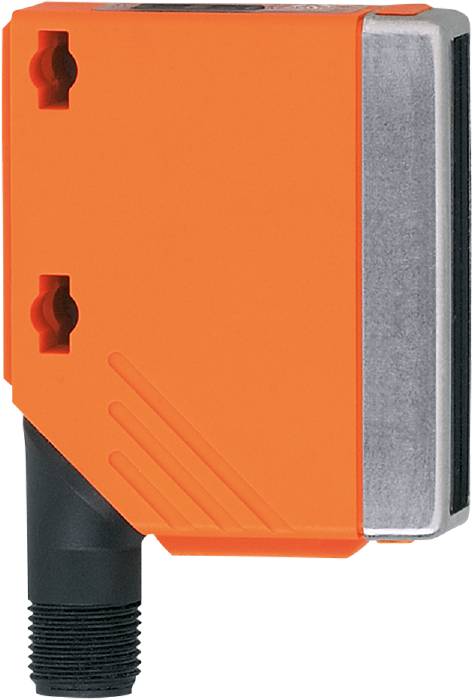

ifm Electronic One-way light barrier O5E502 O5E502 Teach-in 1 pc(s)
EAN:
Part number:
Item no:
Product type
One-way light barrier
Functions
Teach-in
Max. operating voltage
36 V DC
Connector
M12
Type
O5E502
Datasheet (PDF)
Technical specifications
- Product type
One-way light barrier
- Type
O5E502
- Functions
Teach-in
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Outputs
NPN
- Switching frequency
1000 Hz
- Connector
M12
- Transmitter type
LED red
- Light emission
lateral
25 m
- Features
LED indicator
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319849 ifm Electronic One-way light barrier O5E502 O5E502 Teach-in 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319849 ifm Electronic One-way light barrier O5E502 O5E502 Teach-in 1 pc(s)
Description
Hints
For more information on this O5E502, please refer to its datasheet under 'downloadable documents'
