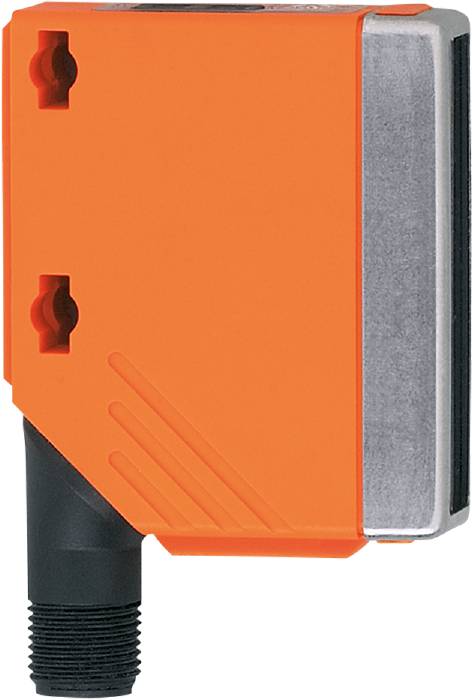

ifm Electronic One-way light barrier O5S500 O5S500 1 pc(s)
EAN:
Part number:
Item no:
Product type
One-way light barrier
Max. operating voltage
36 V DC
Connector
M12
Type
O5S500
Min. operating voltage
10 V DC
Datasheet (PDF)
Technical specifications
- Product type
One-way light barrier
- Type
O5S500
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Connector
M12
- Enclosure material
PA
- Transmitter type
LED red
- Light emission
lateral
- Wavelength
624 nm
25 m
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
47 mm
- Width
46.8 mm
- Height
56 mm
- Depth
18.2 mm
- Dim
(L x W x H) 47 x 46.8 x 56 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319315 ifm Electronic One-way light barrier O5S500 O5S500 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319315 ifm Electronic One-way light barrier O5S500 O5S500 1 pc(s)
Description
Hints
For more information on this O5S500, please refer to its datasheet under 'downloadable documents'
