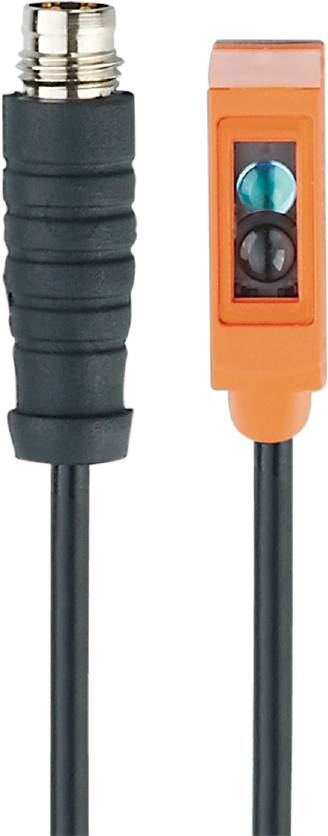

ifm Electronic One-way light barrier O8E204 O8E204 Dark-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
One-way light barrier
Functions
Dark-ON
Max. operating voltage
30 V DC
Connector
M8
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
One-way light barrier
- Type
O8E204
- Functions
Dark-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Blanking
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M8
- Cable length
0.3 m
- Enclosure material
Stainless steel V4A
- Light emission
lateral
- Wavelength
633 nm
3 m
- Features
LED indicator
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
14.4 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318659 ifm Electronic One-way light barrier O8E204 O8E204 Dark-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318659 ifm Electronic One-way light barrier O8E204 O8E204 Dark-ON 1 pc(s)
Description
Hints
For more information on this O8E204, please refer to its datasheet under 'downloadable documents'
