Buy ifm Electronic One-way light barrier OA0102 OA0102 Switch (light-ON/dark-ON) 1 pc(s)

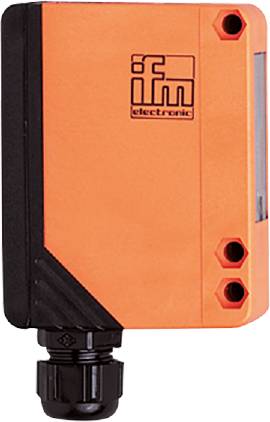

Image similar

Product type

One-way light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

250 V DC

250 V AC

Connector

Clip

Type

OA0102

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 90 x 30 x 70
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
Functional principle opto: One-way light barrier
Ambient temperature-1 [°C]: -25...60
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
OPERATING VOLTAGE [V]: 20...250 AC/DC
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
Frequency AC [Hz]: 47...63
Housing: Square
Weight [g]: 304,500
Connection/terminals ready for assembly: Terminals: ...1.5 mm²; cable jacket: Ø 4.5...10 mm; cable gland: M16 X 1.5
CONTACT RATING 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W.
Short-circuit-proof: No.
Type of light: Infrared light
Max. Power consumption [VA]: 3.5
MTTF: 271
Optics material: PMMA
Range/width adjustable: Yes
Range [m]: 25...50; (depending on the used station)
Switching frequency AC [Hz]: 10
Switching frequency DC [Hz]: 10
Protection system: IP 65
Protection class: II
Transmitter/receiver: Receiver
Overload-proof: No.
Reverse polarity protected: No.
Wavelength [nm]: 880
