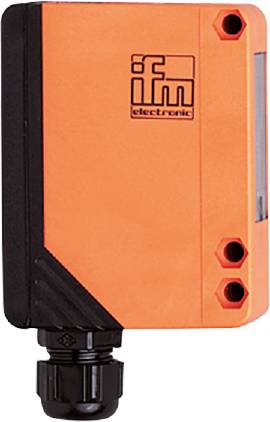

Buy ifm Electronic One-way light barrier OA5102 OA5102 Switch (light-ON/dark-ON) 1 pc(s)

Image similar

Product type

One-way light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

36 V DC

Connector

Clip

Type

OA5102

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 90 x 30 x 70
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
Functional principle opto: One-way light barrier
Ambient temperature-1 [°C]: -25...60
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
Special feature: Function control output
Operating voltage [V]: 10... 36 DC
Continuous current carrying capacity of the switching output DC [mA]: 250
Electrical version: PNP/NPN
Function control output: Yes
Housing: Square
Weight [g]: 281,000
Connection/terminals ready for assembly: Terminals: ...1.5 mm²; cable jacket: Ø 4.5...10 mm; cable gland: M16 X 1.5
Short-circuit protection: Yes
Type of light: Infrared light
MTTF: 399
Optics material: PMMA
Test mark (special cases): CCC
Range/width adjustable: Yes
Range [m]: < 50
Switching frequency DC [Hz]: 300
Protection system: IP 65
Protection class: II
Transmitter/receiver: Receiver
Current consumption: < 50
Current carrying capacity double operation [mA]: 100
Load capacity function control output [mA]: 10
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 880
