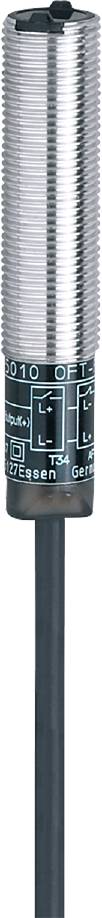

ifm Electronic One-way light barrier OF5018 OF5018 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
One-way light barrier
Max. operating voltage
36 V DC
Connector
Cable, open end
Type
OF5018
Datasheet (PDF)
Highlights & Details
Ifm OF5018 One-way light barrier
- Compact design for use in narrow installation spaces
- Robust metal casing for use in harsh industrial environments
- High volume output
- LED-display for monitoring the operating condition
Technical specifications
- Dimensions [mm] M12 x 1 / L = 60
- Display: Operation 1 x LED, green
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...60
- Short-circuit protection version: Synchronised
- Operating voltage [V]: 10... 36 DC
- Housing: Threaded design
- Weight [g]: 72,300
- Thread name M12 x 1
- Cable: 2 m, PUR; 2 x 0.34 mm²
- Short-circuit protection: Yes
- Type of light: Infrared light
- Light spot dimensions apply to: At maximum range
- Max. Light spot diameter [mm]: 700
- MTTF: 1597
- Optics material: PMMA
- Test mark (special cases): CCC
- Range [m]: < 4
- IP 67 protection
- Protection class: II
- Transmitter/receiver: Transmitter
- Current consumption: < 20
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Wavelength [nm]: 880
- Packaging type
Piece
- Product type
One-way light barrier
- Type
OF5018
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Connector
Cable, open end
- Cable length
2 m
- Enclosure material
Metal
- Transmitter type
LED IR
- Wavelength
880 nm
4 m
- Features
LED indicator
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
60 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 60 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318861 ifm Electronic One-way light barrier OF5018 OF5018 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318861 ifm Electronic One-way light barrier OF5018 OF5018 1 pc(s)
Description
Ifm OF5018 One-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OF5018, please refer to its datasheet under 'downloadable documents'
