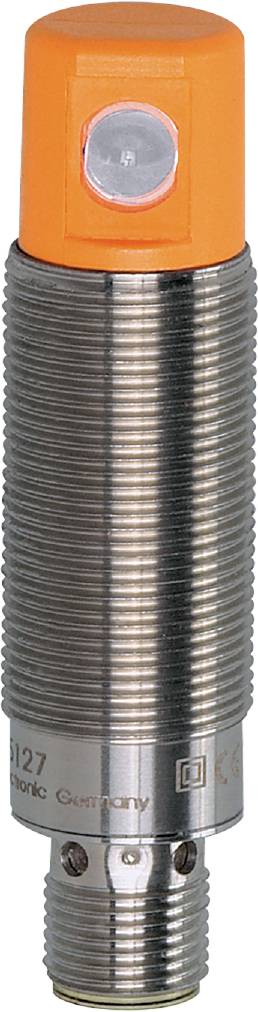

ifm Electronic One-way light barrier OG5129 OG5129 Transmitter 1 pc(s)
EAN:
Part number:
Item no:
Product type
One-way light barrier
Max. operating voltage
30 V DC
Connector
M12
Type
OG5129
Model
Transmitter
Datasheet (PDF)
Highlights & Details
Ifm OG5129 One-way Light Barrier
- Particularly space-saving design with side light emission
- For use in narrow installation spaces
- Immediate operational readiness thanks to fixed setting
- Robust housing for use in rough industrial environment
- Very long range
Technical specifications
- Dimensions [mm]: M18 x 1 / L = 59.3
- Display: Operation 1 x LED, green
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...60
- Operating voltage [V]: 10...30 DC; ("supply class 2" according to cULus)
- Housing: Threaded design
- Weight [g]: 58,000
- Thread name M18 x 1
- Type of light: Red light
- Light spot dimensions apply to: At maximum range
- Max. Light spot diameter [mm]: 3000
- MTTF: 1714
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/key width adjustable: No.
- Range [m]: < 9
- Protection class:IP 68
- Protection class: II
- Transmitter/receiver: Transmitter
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 19
- Reverse polarity protection: Yes
- Wavelength [nm]: 660
- Product type
One-way light barrier
- Type
OG5129
- Model
Transmitter
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Connector
M12
- Size
M18 x 1
- Transmitter type
LED red
- Light emission
lateral
- Wavelength
660 nm
9 m
- Features
LED indicator
IP68
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
59.3 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 59.3 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318963 ifm Electronic One-way light barrier OG5129 OG5129 Transmitter 1 pc(s)
Description
Ifm OG5129 One-way Light Barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OG5129, please refer to its datasheet under 'downloadable documents'
