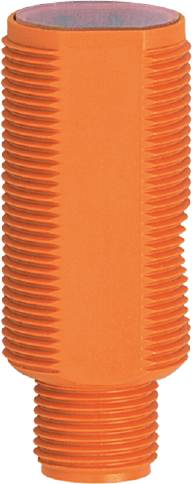

ifm Electronic One-way light barrier OGE103 OGE103 Light-ON 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
One-way light barrier
Functions
Light-ON
Max. operating voltage
30 V DC
Connector
M12
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
One-way light barrier
- Type
OGE103
- Functions
Light-ON
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
Unblinking
- Outputs
NPN
- Switching frequency
1000 Hz
- Connector
M12
- Size
M18 x 1
- Transmitter type
LED red
8 m
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
44 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 44 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317590 ifm Electronic One-way light barrier OGE103 OGE103 Light-ON 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3317590 ifm Electronic One-way light barrier OGE103 OGE103 Light-ON 1 pc(s)
Description
Hints
For more information on this OGE103, please refer to its datasheet under 'downloadable documents'
