Buy ifm Electronic One-way light barrier OGS380 OGS380 1 pc(s)

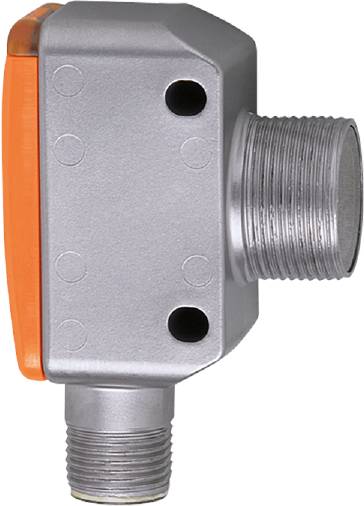

Image similar

Product type

One-way light barrier

Max. operating voltage

30 V DC

Connector

M12

Type

OGS380

Min. operating voltage

10 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 52.9 x 20 x 34.6
Display: Operation 1 x LED, green
Functional principle opto: One-way light barrier
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...80
Optics alignment: Lateral look
Rated insulation voltage [V]: 32
Required master port class: A
Operating voltage [V]: 10... 30 DC
Housing: Square with M18 thread
Weight [g]: 78,000
Thread name M18 x 1
IO-Link functions (acyclic): Application-specific marking; operating hours counter
Communication interface: IO-Link
Storage temperature [°C]: -40...80
Type of light: Red light
Light spot dimensions apply to: At maximum range
Max. Standby delay time [ms]: 300
Max. Light spot diameter [mm]: 800
Min Process cycle time [ms]: 2.5
MTTF: 1011
Optics material:PEI
Profile: Smart sensor: Device identification, device diagnostics
Range [m]: 15
PROTECTION CLASS IP 65; IP 67; IP 68; IP 69K
Protection class III
Transmitter/receiver: Transmitter
SIO mode: No.
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: 17
Reverse polarity protection: Yes
Wavelength [nm]: 662
