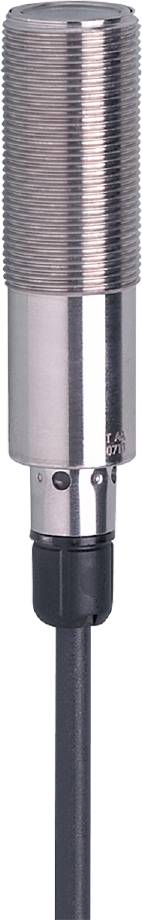

Image similar
Image similar
ifm Electronic One-way light barrier OGS501 OGS501 1 pc(s)
EAN:
Part number:
Item no:
Product type
One-way light barrier
Max. operating voltage
36 V DC
Connector
Cable, open end
Type
OGS501
Min. operating voltage
10 V DC
Datasheet (PDF)
Highlights & Details
Ifm OGS501 One-way light barrier
- Robust stainless steel housing for use in harsh industrial environments
- Very long range
- Immediate operational readiness thanks to fixed setting
- Extensive range of mounting components for easy and quick mounting
- Very good value for money
Technical specifications
- Dimensions [mm]: M18 x 1 / L = 80.4
- Display: Operation 1 x LED, green
- Functional principle opto: One-way light barrier
- Ambient temperature-1 [°C]: -25...80
- Operating voltage [V]: 10... 36 DC
- Housing: Threaded design
- Weight [g]: 125,100
- Thread name M18 x 1
- Cable: 2 m, PUR; 3 x 0.34 mm²
- Type of light: Red light
- Light spot dimensions apply to: At maximum range
- Max. Light spot diameter [mm]: 1000
- MTTF: 629
- Optics material: PMMA
- Test mark (special cases): CCC
- Range [m]: < 25
- IP 67 protection
- Protection class: II
- Transmitter/receiver: Transmitter
- Current consumption: 20
- Reverse polarity protection: Yes
- Wavelength [nm]: 624
- Product type
One-way light barrier
- Type
OGS501
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Connector
Cable, open end
- Cable length
2 m
- Size
M18 x 1
- Enclosure material
Stainless steel
- Transmitter type
LED red
- Wavelength
624 nm
25 m
IP67
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
80.4 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319068 ifm Electronic One-way light barrier OGS501 OGS501 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3319068 ifm Electronic One-way light barrier OGS501 OGS501 1 pc(s)
Description
Ifm OGS501 One-way light barrier
This text is machine translated.
This text is machine translated.
Hints
For more information on this OGS501, please refer to its datasheet under 'downloadable documents'
