Buy ifm Electronic One-way light barrier OJ5020 OJ5020 Switch (light-ON/dark-ON) 1 pc(s)

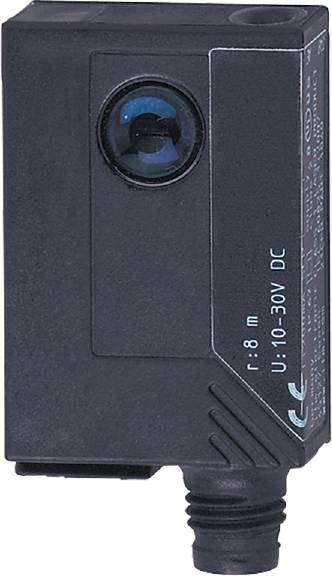

Image similar

Product type

One-way light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Type

OJ5020

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable detection of very small objects
Particularly compact design for use in robotics, assembly and handling technology
Laser protection class 1 for the requirements of the automotive industry
Intuitive adjustment of sensitivity and output function
Easy mounting by latching on mounting base

Dimensions [mm] 35 x 24 x 11
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
Functional principle opto: One-way light barrier
Ambient temperature-1 [°C]: -10...60
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Frontal look
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Diameter of the smallest detectable object [mm]: 0.8
Electrical version: PNP
Electronic lock: Yes
Housing: Square
Weight [g]: 27,200
Short-circuit protection: Yes
Laser protection class 1
Type of light: Red light
max. Voltage drop switch output DC [V]: 2.5
MTTF: 968
Optics material: Glass
Test mark (special cases): CCC
Range/width adjustable: Yes
Range [m]: < 1
Switching frequency DC [Hz]: 1200
IP 67 protection
Protection class III
Transmitter/receiver: Receiver
Plug connection: Pin layout: 0060 - plug connection: 1 x M8; code: A.
Current consumption: < 12
Type. Life span [h]: 50000
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 650
