Buy ifm Electronic PS3208 Level probe PS3208 1 pc(s)

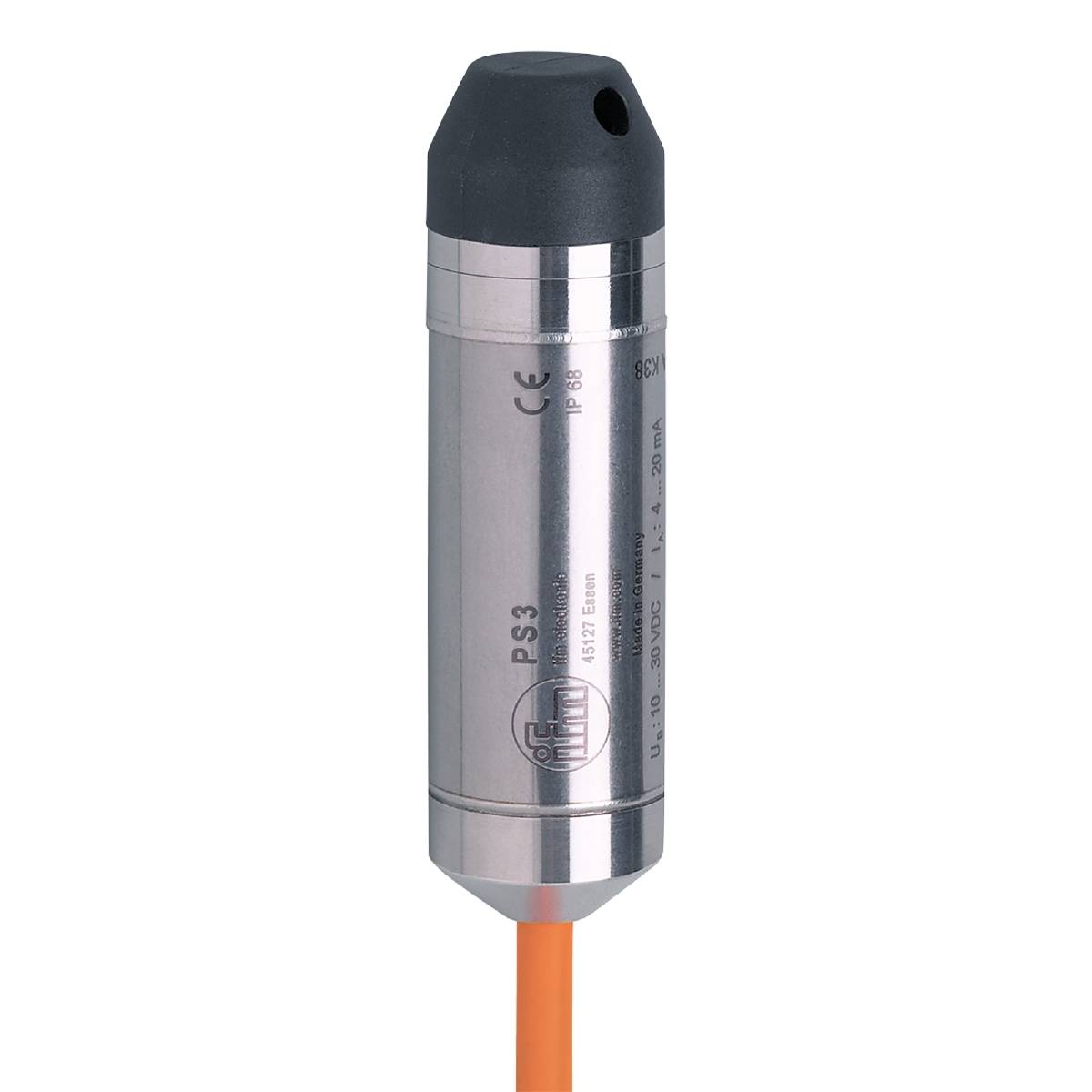

Silver cylindrical pressure measuring device with a black upper end and orange cable, bearing the inscription 'PS3'.

Image similar

Product type

Level probe

Type

PS3208

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Operating voltage

10 - 30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm PS3208 level probe

Low-cost and easy level measurement
Pressure compensation via internally ventilated cable
Reduced wiring expenditure when operating as two-wire current loop
High overall accuracy and long-term stability
Robust stainless steel housing with high leak tightness

Technical specifications

Analog output current [mA]: 4...20
Number of analog outputs: 1
Number of inputs and outputs: Number of analog outputs: 1
Compressive strength [psi]: 29
Characteristic curve deviation: < 0.5 (BFSL) / 1; (incl. linearity, zero point and clamping error (limit point setting))
Linearity deviation percent range: < 0.2 (BFSL)
Level measuring principle: Hydrostatic
Ambient temperature-1 [°C]: -10...50
Repeatability Percentage range: < 0.1; ( < 10 K for temperature fluctuations)
Application: For industrial use
Design: With capillary tube for pressure compensation
Output signal: Analogue signal
Operating voltage [V]: 10... 30 DC
Print: Relative pressure
Compressive strength [bar]: 2
Compressive strength [kPa]: 200
Pressure equipment directive: Good engineering practice; suitable for fluid group 2 media; fluid group 1 media on request
Total number of outputs: 1
Weight [g]: 553,600
Cable: Cable: 5 m, PUR, Ø 7.5 mm; wire insulation: PVC
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Long-term stability: < 0.2; (per year)
Max. Load Ω: 700; (Ub = 24 V; (Ub - 10 V) / 20 mA)
Media: Liquid media
Medium temperature [°C]: -10...50
Measuring range [bar]: 0...0.25
Measuring range [inH2O]: 0...100.4
Measuring range: 0...25
Measuring range [mbar]: 0...250
Measuring range [psi]: 0...3.63
Min Burst pressure [bar]: 2.4
Min Bursting pressure [kPa]: 240
Min Burst pressure [psi]: 35
MTTF: 403
Protection class:IP 68
Protection class III
Temperature coefficient Zero point: < ± 0.2; (0...50 °C)
Temperature coefficient range: < ± 0.2; (0...50 °C)
Reverse polarity protection: Yes
