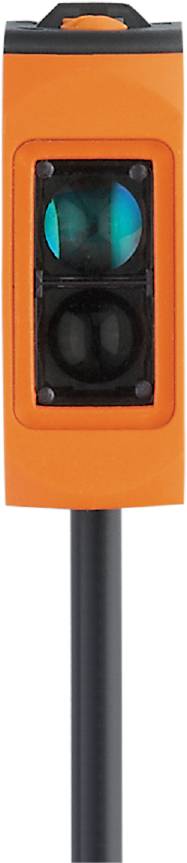

ifm Electronic Retroreflective light barrier O6P200 O6P200 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
Cable, open end
Type
O6P200
Datasheet (PDF)
Highlights & Details
Ifm O6P200 reflective photoelectric sensor
- Especially compact design for use in narrow installation spaces
- Very long range, regardless of the color of the object
- Intuitive sensitivity adjustment using potentiometers
- Convenient selection of bright or dark switching via rotary switch
- Very good value for money
Technical specifications
- Dimensions [mm] 35.4 x 13 x 21
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light barrier
- Ambient temperature-1 [°C]: -25...60
- Tightening torque [Nm]: 0.5
- Short-circuit protection version: Synchronised
- Output function: Light-/dark switching (switchable)
- Optics alignment: Lateral look
- Special property: Polfilter
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Electrical version: PNP
- Housing: Square
- Weight [g]: 59,900
- Cable: 2 m, PUR; 3 x 0.25 mm²
- Short-circuit protection: Yes
- Storage temperature [°C]: -40...70
- Type of light: Red light
- Light spot dimensions apply to: At maximum range
- Max. Light spot diameter [mm]: 150
- max. Voltage drop switch output DC [V]: 2.5
- Max. Permissible relative humidity [%]: 50; (70°C)
- MTTF: 895
- Optics material: PMMA
- Polarising filter: Yes
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Range on triple mirror [m]: 0.05...5; (triple mirror Ø 80 E20005)
- Switching frequency DC [Hz]: 1000
- Protection class IP 65; IP 67
- Protection class III
- Power consumption 12; ((24 V)
- Reverse polarity protection: Yes
- Wavelength [nm]: 633
- Product type
Retroreflective light barrier
- Type
O6P200
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
Cable, open end
- Cable length
2 m
- Enclosure material
Acrylonitrile butadiene styrene
- Transmitter type
Red light, polarised
- Light emission
lateral
- Wavelength
633 nm
5 m
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Length
21 mm
- Width
21 mm
- Height
35.4 mm
- Depth
13 mm
- Dim
(L x W x H) 21 x 21 x 35.4 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318869 ifm Electronic Retroreflective light barrier O6P200 O6P200 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318869 ifm Electronic Retroreflective light barrier O6P200 O6P200 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm O6P200 reflective photoelectric sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this O6P200, please refer to its datasheet under 'downloadable documents'
