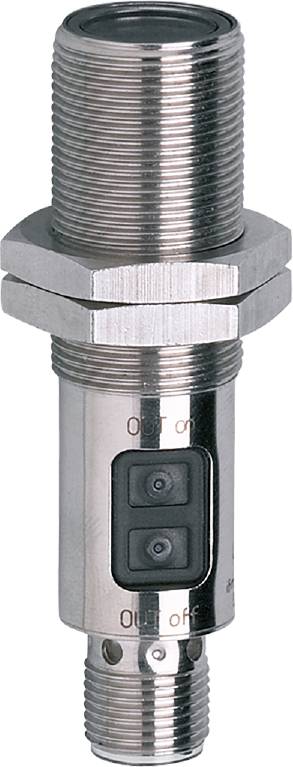

Buy ifm Electronic Retroreflective light barrier OGP500 OGP500 Switch (light-ON/dark-ON) 1 pc(s)

Image similar

Product type

Retroreflective light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

36 V DC

Connector

M12

Type

OGP500

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm]: M18 x 1 / L = 72
Display: Switch status 1 x LED, yellow
Functional principle opto: Reflection light barrier
Ambient temperature-1 [°C]: -25...80
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Special property: Polfilter
Operating voltage [V]: 10... 36 DC
Constant current carrying capacity of the switching output DC [mA]: 150; (200 (...60 °C)
Electrical version: PNP
Housing: Threaded design
Weight [g]: 61,800
Thread name M18 x 1
Short-circuit protection: Yes
Type of light: Red light
Light spot dimensions apply to: At maximum range
Max. Light spot diameter [mm]: 200
max. Voltage drop switch output DC [V]: 2.5
MTTF: 431
Optics material: PMMA
Polarising filter: Yes
Test mark (special cases): CCC
Range/width adjustable: Yes
Range on triple mirror [m]: 0.03...5; (triple mirror Ø 80 E20005)
Switching frequency DC [Hz]: 2000
IP 67 protection
Protection class: II
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: 20
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 624
