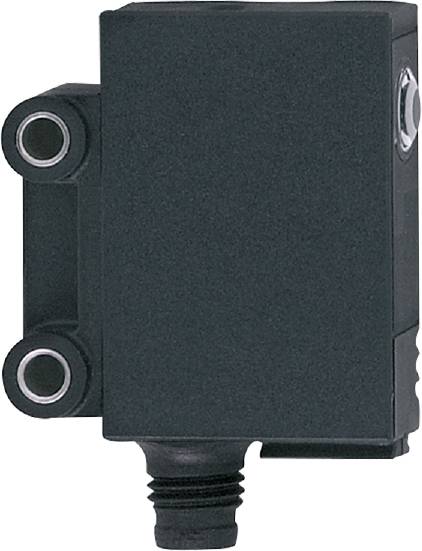

Buy ifm Electronic Retroreflective light barrier OJ5136 OJ5136 Switch (light-ON/dark-ON) 1 pc(s)

Image similar

Product type

Retroreflective light barrier

Functions

Switch (light-ON/dark-ON)

Max. operating voltage

30 V DC

Connector

Type

OJ5136

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Reliable detection of very small objects
Particularly compact design for use in robotics, assembly and handling technology
Very long range
Intuitive adjustment of sensitivity and output function
Simple alignment by visible laser light spot

Dimensions [mm] 35 x 11 x 24
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
Functional principle opto: Reflection light barrier
Ambient temperature-1 [°C]: -10...60
Short-circuit protection version: Synchronised
Output function: Light / dark switching (programmable)
Optics alignment: Lateral look
Special property: Polfilter
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Diameter of the smallest detectable object [mm]: 2.5; (0.1 m; 2.5 m: 4; 5 m: 8)
Electrical version: PNP
Electronic lock: Yes
Housing: Square
Weight [g]: 28,100
Short-circuit protection: Yes
Laser protection class 1
Type of light: Red light
Light spot dimensions apply to: At maximum range
Max. Light spot diameter [mm]: 12
max. Voltage drop switch output DC [V]: 2.5
MTTF: 697
Optics material: Glass
Polarising filter: Yes
Test mark (special cases): CCC
Range/width adjustable: Yes
Range on triple mirror [m]: 8; (triple mirror 50 x 50 E20722)
Switching frequency DC [Hz]: 2000
IP 67 protection
Protection class III
Plug connection: Pin layout: 0060 - plug connection: 1 x M8; code: A.
Current consumption: < 15
Type. Life span [h]: 50000
Overload-proof: Yes
Reverse polarity protection: Yes
Wavelength [nm]: 650
