Buy ifm Electronic Retroreflective photo sensor O6H207 O6H207 Background suppression 1 pc(s)

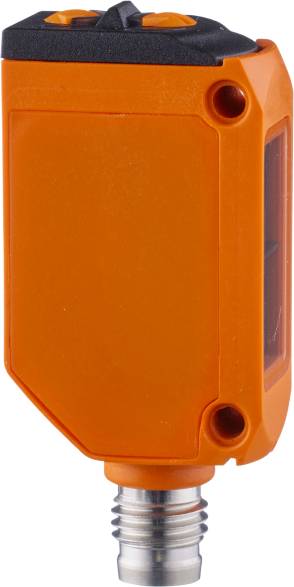

Image similar

Product type

Retroreflective photo sensor

Functions

Background suppression

Max. operating voltage

30 V DC

Connector

Type

O6H207

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Especially compact design for use in narrow installation spaces
Intuitive sensitivity adjustment using potentiometers
Convenient selection of bright or dark switching via rotary switch
Background suppression especially with noise immunity, even in case of strongly reflecting backgrounds
Very good value for money

Dimensions [mm] 46 x 13 x 21
Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
Functional principle opto: Reflection light sensor
Ambient temperature-1 [°C]: -25...60
Tightening torque [Nm]: 0.5
Short-circuit protection version: Synchronised
Output function: Light-/dark switching (switchable)
Optics alignment: Lateral look
Special feature: Background suppression
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: NPN
Housing: Square
Weight [g]: 18,100
Background suppression available: Yes
Short-circuit protection: Yes
Type of light: Red light
Light spot dimensions apply to: At maximum sensor width
Max. Light spot diameter [mm]: 8
max. Voltage drop switch output DC [V]: 2.5
MTTF: 683
Optics material: PMMA
Test mark (special cases): CCC
Range/width adjustable: Yes
Switching frequency DC [Hz]: 1000
Protection class IP 65; IP 67
Protection class III
Plug connection: Pin layout: 0060 - Plug connection: 1 x M8; Coding: A; lock: Brass, coated; Seal: EPDM
Power consumption 22; ((24 V)
Scan width [mm]: 2...200; (white paper 200 x 200 )
Touch width object gray (18% response) [mm]: 4...200
Touch width object black (6% response) [mm]: 8...200
Touch width object white (90% response) [mm]: 2...200
Reverse polarity protection: Yes
Wavelength [nm]: 633
Material seal: EPDM
