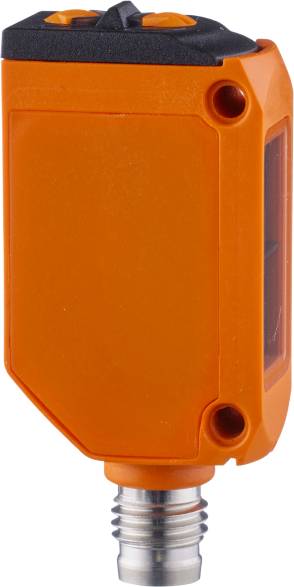

Image similar
ifm Electronic Retroreflective photo sensor O6T215 O6T215 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
30 V DC
Connector
M8
Type
O6T215
Datasheet (PDF)
Highlights & Details
Ifm O6T215 reflective light sensor
- Especially compact design for use in narrow installation spaces
- Intuitive setting of the sensor width with the help of potentiometers
- Convenient selection of bright or dark switching via rotary switch
- Very good value for money
Technical specifications
- Dimensions [mm] 46 x 13 x 21
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -25...60
- Tightening torque [Nm]: 0.5
- Short-circuit protection version: Synchronised
- Output function: Light-/dark switching (switchable)
- Optics alignment: Lateral look
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Setting range [mm]: 100...600
- Electrical version: PNP
- Housing: Square
- Weight [g]: 19,000
- Short-circuit protection: Yes
- Type of light: Infrared light
- Light spot dimensions apply to: At maximum sensor width
- Max. Light spot diameter [mm]: 24
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 898
- Optics material: PMMA
- Test mark (special cases): CCC
- Range/width adjustable: Yes
- Switching frequency DC [Hz]: 1000
- Protection class IP 65; IP 67
- Protection class III
- Plug connection: Pin layout: 0060 - Plug connection: 1 x M8; Coding: A; lock: Brass, coated; Seal: EPDM
- Power consumption 16; ((24 V)
- Scan width [mm]: 5...600; (white paper 200 x 200 90% remission)
- Reverse polarity protection: Yes
- Wavelength [nm]: 850
- Material seal: EPDM
- Product type
Retroreflective photo sensor
- Type
O6T215
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching frequency
1000 Hz
- Connector
M8
- Transmitter type
LED IR
- Light emission
lateral
- Wavelength
850 nm
600 mm
- Features
LED indicator
IP65
IP67
- Min. temperature
-25 °C
- Max. temperature
60 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318886 ifm Electronic Retroreflective photo sensor O6T215 O6T215 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3318886 ifm Electronic Retroreflective photo sensor O6T215 O6T215 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm O6T215 reflective light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this O6T215, please refer to its datasheet under 'downloadable documents'
