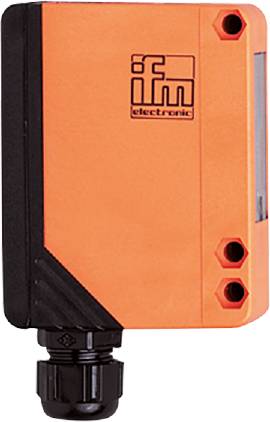

Image similar
ifm Electronic Retroreflective photo sensor OA0108 OA0108 Switch (light-ON/dark-ON) 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Switch (light-ON/dark-ON)
Max. operating voltage
250 V DC
250 V AC
Connector
Clip
Type
OA0108
Datasheet (PDF)
Highlights & Details
Ifm OA0108 reflex light sensor
- Very high sensor width
- Intuitive adjustment of sensitivity and duration of the switching delay
- Programmable light / dark switching
- With function control output for signaling of contamination or adjust
- LED-display for monitoring the mode, switching state and function
Technical specifications
- Dimensions [mm] 90 x 30 x 70
- Display: Switch status: 1 x LED, yellow; operation: 1 x LED, green; function: 1 x LED, red
- Functional principle opto: Reflection light sensor
- Ambient temperature-1 [°C]: -25...60
- Output function: Light / dark switching (programmable)
- Optics alignment: Lateral look
- OPERATING VOLTAGE [V]: 20...250 AC/DC
- Electrical version: Relay
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
- Frequency AC [Hz]: 47...63
- Housing: Square
- Weight [g]: 304,500
- Connection/terminals ready for assembly: Terminals: ...1.5 mm²; cable jacket: Ø 4.5...10 mm; cable gland: M16 X 1.5
- CONTACT RATING 250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W.
- Short-circuit-proof: No.
- Type of light: Infrared light
- Light spot dimensions apply to: At maximum sensor width
- Max. Power consumption [VA]: 2
- Max. Light spot diameter [mm]: 370
- MTTF: 288
- Optics material: PMMA
- Range/width adjustable: Yes
- Switching frequency AC [Hz]: 10
- Switching frequency DC [Hz]: 10
- Protection system: IP 65
- Protection class: II
- Scan width [mm]: 5...1500; (white paper 200 x 200 )
- Overload-proof: No.
- Reverse polarity protected: No.
- Wavelength [nm]: 880
- Product type
Retroreflective photo sensor
- Type
OA0108
- Functions
Switch (light-ON/dark-ON)
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Outputs
Relay
- Switching frequency
10 Hz
- Connector
Clip
- Enclosure material
PMMA
- Transmitter type
LED IR
- Light emission
lateral
- Wavelength
880 nm
1500 mm
- Features
Incl. background suppression
IP65
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Width
30 mm
- Height
90 mm
- Depth
70 mm
- Dim
(W x H x D) 30 x 90 x 70 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320696 ifm Electronic Retroreflective photo sensor OA0108 OA0108 Switch (light-ON/dark-ON) 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320696 ifm Electronic Retroreflective photo sensor OA0108 OA0108 Switch (light-ON/dark-ON) 1 pc(s)
Description
Ifm OA0108 reflex light sensor
This text is machine translated.
This text is machine translated.
Hints
For more information on this OA0108, please refer to its datasheet under 'downloadable documents'
