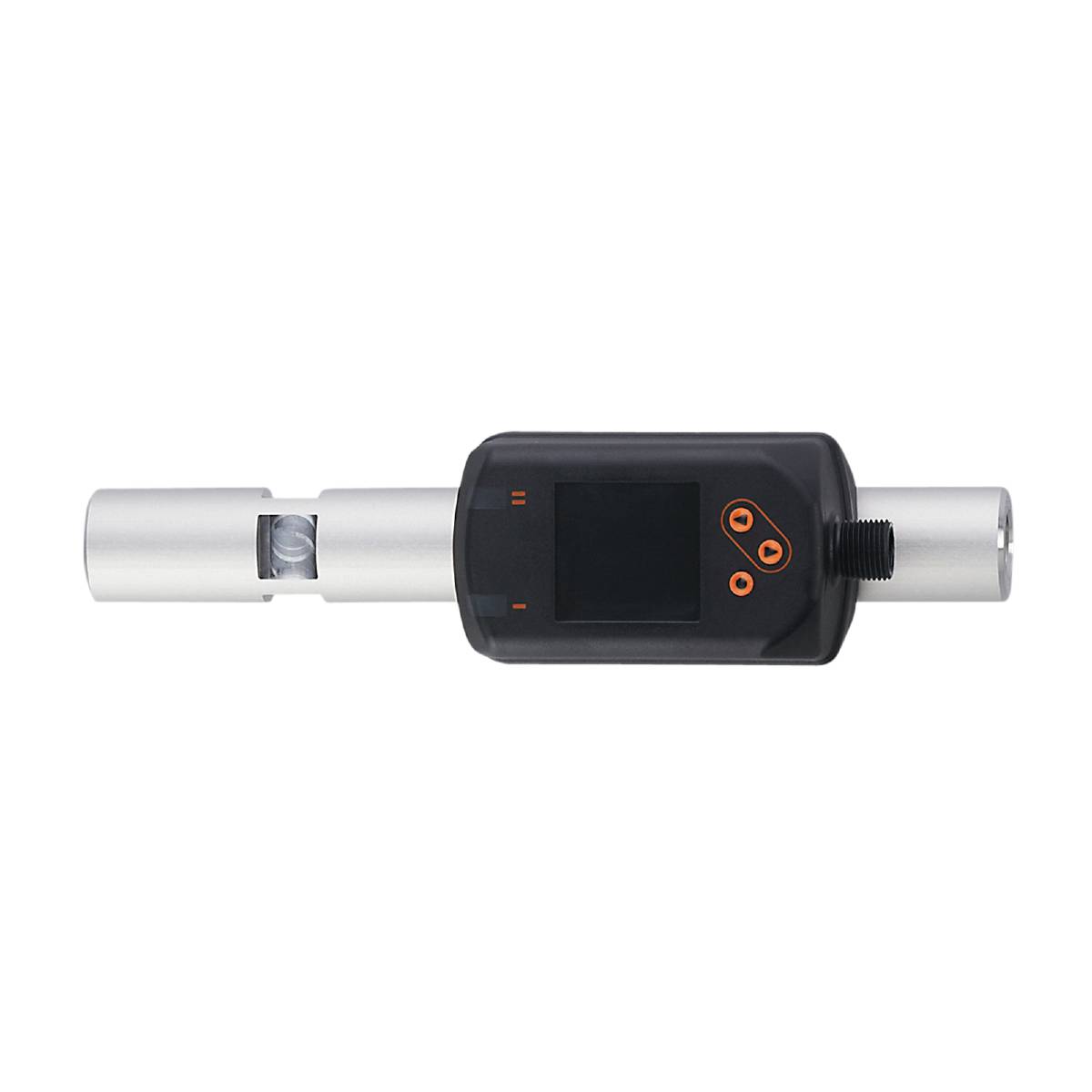

ifm Electronic SD5800 Industrial gas meter SD5800 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial gas meter
Type
SD5800
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Operating voltage
18 - 30 V DC
Datasheet (PDF)
Highlights & Details
Ifm SD5800 industrial gas counter
- Precise measurement of flow, consumption, pressure and medium temperature
- High accuracy, reproducibility and measurement dynamics
- For the detection of helium
- Red-green change-display for clear marking of good areas
- Optimum alignment by rotating the display
- Convenient operation via keys or parameterization via IO-Link
Technical specifications
- Analog output current [mA]: 4...20; (scalable)
- Analog endpoint - temperature monitoring [°C]: 4...60
- Analog endpoint - temperature monitoring [°F]: 39.2...140
- Analog end point - Pressure monitoring [bar]: 2.2...16
- Analog end point AEP [l/min]: 16.7...83.3
- Analog end point AEP [m/s]: 5.5...27.6
- Analog end point AEP [m³/h]: 1...5
- Analog start point - temperature monitoring [°C]: -10...46
- Analog start point - temperature monitoring [°F]: 14...114.8
- Analog start point - Pressure monitoring [bar]: -1...12.8
- Analog start point ASP [l/min]: 0...66.6
- Analog start point ASP [m/s]: 0...22.1
- Analog start point ASP [m³/h]: 0...4
- Response dynamics T05 / T09 - Temperature monitoring [s]: T09 = 0.5
- Response time [s]: 0.1; (DAP = 0)
- Response time - pressure monitoring [s]: 0.05
- Number of analog outputs: 1
- Number of digital outputs: 2
- Number of inputs and outputs: Number of digital outputs: 2; number of analog outputs: 1
- Display: Colour display 1.44", 128 x 128 pixels; : 2 x LEDs, yellow
- Display area - temperature monitoring [°C]: -24...74
- Display area - temperature monitoring [°F]: -11.2...165.2
- Display area - Pressure monitoring [bar]: -1...20
- Display area [l/min]: 0...100
- Display area [m/s]: 0...33.1
- Display area [m³/h]: 0...6
- Display area - Flow rate monitoring [m³]: 0...100000000
- Display area - Flow rate monitoring [SCF]: 0...353146667.2
- Compressive strength [MPa]: 1.6
- Pulse length - Flow rate monitoring [s]: 0.01...2
- IO-Link Revision: 1.1
- SDCI STANDARD IEC 61131-9 CDV
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Ambient temperature-1 [°C]: 0...60
- Repeatability: 0.8% MW + 0.2% MEW
- Application: For industrial use
- Resolution [l/min]: 0.2
- Resolution [m/s]: 0.1
- Resolution [m³/h]: 0.01
- Resolution - Pressure monitoring [bar]: 0.05
- Resolution - temperature monitoring [°C]: 0.2
- Resolution - temperature monitoring [°F]: 0.5
- Short-circuit protection version: Synchronised
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal; analog signal; pulse signal; IO-Link; (configurable)
- Required master port class: A
- Standby delay time [s]: 1
- Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
- Damping process value DAP [s]: 0...5
- Continuous current carrying capacity of the switching output DC [mA]: 150; (per output)
- Compressive strength [bar]: 16
- Pressure equipment directive: Good engineering practice; suitable for stable gases of the fluid group 2
- Inputs: Counter reset
- Electrical version: PNP/NPN
- Accuracy - temperature monitoring [K]: ± 0.5; (for media flow within the limits of the flow measuring range)
- Accuracy (in measurement range): ± (6% MW + 0.6% MEW); at medium temperature 23°C.
- Weight [g]: 554,000
- Largest TK of range - Pressure monitoring [% MEW / 10 K]: ± 0.15
- Largest TC of the zero point - Pressure monitoring [% MEW / 10 K]: ± 0.25
- Pulse output: Consumption meter
- Pulse rating - Flow rate monitoring [m³]: 0.001...10000000
- Pulse rating - Flow rate monitoring [SCF]: 0.05...353146667.2
- In steps of - Print monitoring [bar]: 0.01
- In steps of - flow rate monitoring [m³]: 0.0001
- In steps of - Flow rate monitoring [SCF]: 0.005
- In steps of - temperature monitoring [°C]: 0.1
- In steps of - temperature monitoring [°F]: 0.1
- Characteristic curve deviation - Pressure monitoring: < ± 0.5; (BFSL = Best Fit Straight Line (minimum value setting))
- Communication interface: IO-Link
- Short-circuit protection: Yes
- Storage temperature [°C]: -20...85
- MAWP for applications according to CRN [bar]: 9.5
- Max. Burden [Ω]: 500
- max. Voltage drop switch output DC [V]: 2.5
- Max. Permissible relative humidity [%]: 90
- Media: Helium (He)
- Medium temperature [°C]: -10...60
- Measuring range [l / min]: 0.8...83.4
- Measuring range [m/s]: 0.3...27.6
- Measuring range [m³/h]: 0.05...5
- Measuring range - pressure monitoring [bar]: -1...16
- Measuring range - Flow rate monitoring [m³]: 0...100000000
- Measuring range - Flow rate monitoring [SCF]: 0...353146667.2
- Measuring range - temperature monitoring [°C]: -10...60
- Measuring range - temperature monitoring [°F]: 14...140
- Min Burst pressure [bar]: 64
- Min Process cycle time [ms]: 7.2
- MTTF: 180
- Parameterization options: Hysteresis/window; NO/NC; current/pulse output; display rotatable / switchable; display unit; totalizer
- Profiles: Digital Measuring Sensor (0x800A), Identification and Diagnosis (0x4000)
- Process connection: Thread connection G 1/4 DN8
- Analogue process data: 8
- Binary process data: 2
- Return point RP [l/min]: 0.9...82.9
- RP [m/s] return point: 0.3...27.5
- Return point RP [m³/h]: 0.05...4.97
- Return point RP - Pressure monitoring [bar]: -1...15.92
- Return point RP - temperature monitoring [°C]: -10...59.7
- Return point RP - temperature monitoring [°F]: 14...139.4
- Switching point SP [l/min]: 1.3...83.3
- Switching point SP [m/s]: 0.4...27.6
- Switching point SP [m³/h]: 0.08...5
- Switching point SP - pressure monitoring [bar]: -0.92...16
- Switching point SP - Flow rate monitoring [m³]: 0.001...10000000
- Switching point SP - Flow control [SCF]: 0.05...353146667.2
- Switching point SP - temperature monitoring [°C]: -9.7...60
- Switching point SP - temperature monitoring [°F]: 14.6...140
- LFC [l/min] creep suppression: 0.6...0.8
- Clash suppression LFC [m/s]: 0.2...0.3
- Creep suppression LFC [m³/h]: 0.04...0.05
- Increment [l/min]: 0.1
- Increment [m/s]: 0.1
- Step width [m³/h]: 0.01
- Protection class IP 65; IP 67
- Protection class III
- SIO mode: Yes
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 80
- Temperature coefficient [1/K]: ± 0.07% MW
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Materials in contact with the Medium: EN AW-6082 (aluminum); 1.4305 (stainless steel / 303); FKM; ceramic glass passivated; PPS GF40; Al2O3 (ceramic); Acrylic
- Repeatability - Pressure monitoring: ± 0.2
- Product type
Industrial gas meter
- Type
SD5800
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
