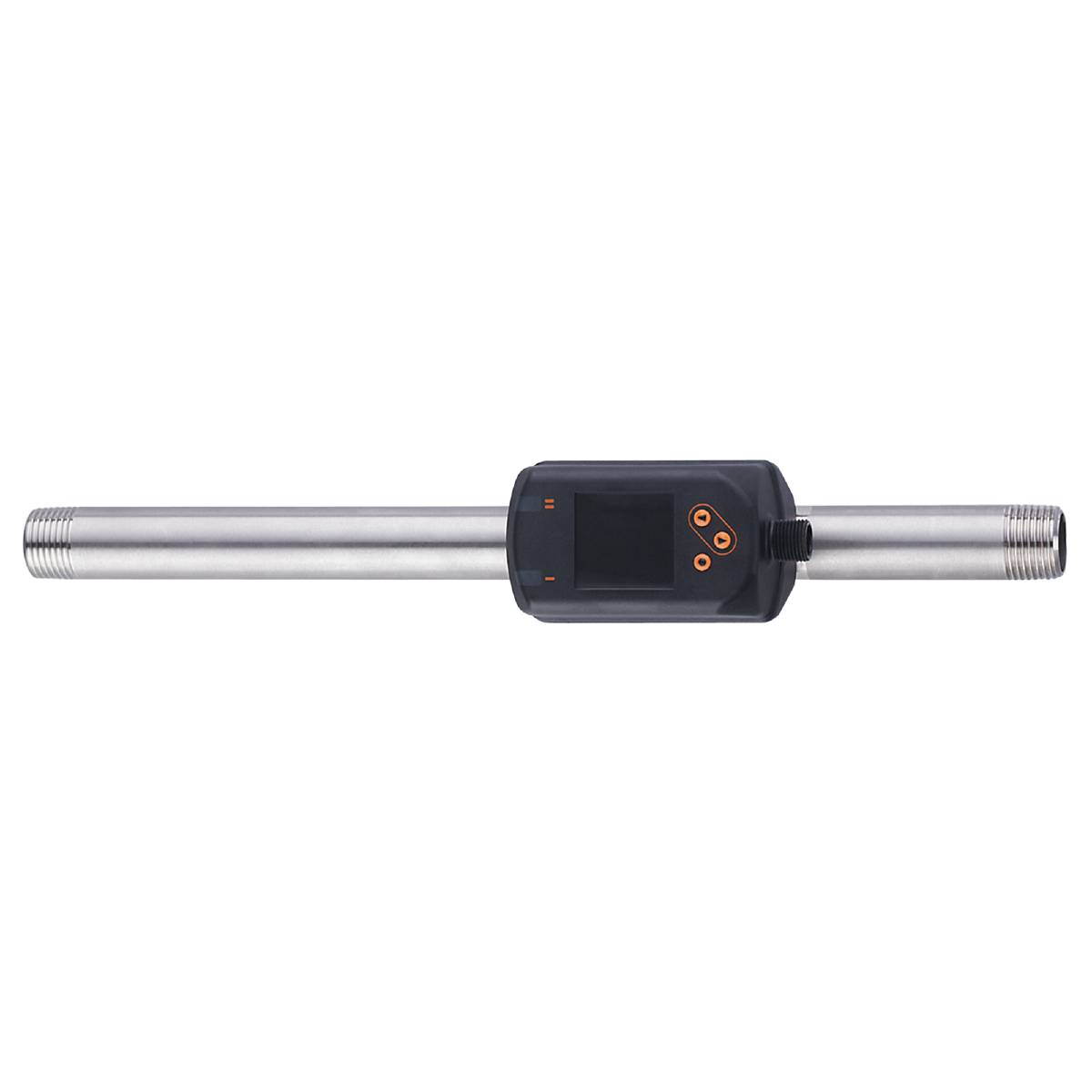

ifm Electronic SD6601 Industrial gas meter SD6601 1 pc(s)
EAN:
Part number:
Item no:
Product type
Industrial gas meter
Type
SD6601
Min. operating voltage
18 V DC
Max. operating voltage
30 V DC
Operating voltage
18 - 30 V DC
Datasheet (PDF)
Highlights & Details
Ifm SD6601 industrial gas meter
- Precise measurement of flow, consumption, pressure and medium temperature
- High accuracy, reproducibility and measurement dynamics
- For measuring argon (Ar), carbon dioxide (CO2), nitrogen (N2) and compressed air
- Red-green change-display for clear marking of good areas
- Optimum alignment by rotating the display
- Convenient operation via keys or parameterization via IO-Link
Technical specifications
- Analog output current [mA]: 4...20; (scalable)
- Analog endpoint - temperature monitoring [°C]: 4...60
- Analog endpoint - temperature monitoring [°F]: 39.2...140
- Analog endpoint - Pressure monitoring [psi]: 32...232
- Analog end point AEP [ft/s]: 65.5...327.4
- AEP [ssh] analogue endpoint: 530...2649
- Analog end point AEP [scfm]: 8.83...44.14
- Analog start point - temperature monitoring [°C]: -10...46
- Analog start point - temperature monitoring [°F]: 14...114.8
- Analog start point - Pressure monitoring [psi]: -15...186
- Analog start point ASP [ft/s]: 0...261.9
- Analog start point ASP [ssh]: 0...2119
- Analog start point ASP [scfm]: 0...35.31
- Response dynamics T05 / T09 - Temperature monitoring [s]: T09 = 0.5
- Response time [s]: 0.1; (DAP = 0)
- Response time - pressure monitoring [s]: 0.05
- Number of analog outputs: 1
- Number of digital outputs: 2
- Number of inputs and outputs: Number of digital outputs: 2; number of analog outputs: 1
- Display: Colour display 1.44", 128 x 128 pixels; : 2 x LEDs, yellow
- Display area - temperature monitoring [°C]: -24...74
- Display area - temperature monitoring [°F]: -11.2...165.2
- Display area [ft/s]: 0...393
- Display area - Flow rate monitoring [m³]: 0...100000000
- Display area - Pressure monitoring [psi]: -15...290
- Display area - Flow rate monitoring [SCF]: 0...353146667.2
- Display area [ssch]: 0...3178
- Display area [scfm]: 0...52.95
- Compressive strength range [psi]: 232
- Pulse length - Flow rate monitoring [s]: 0.002...2
- IO-Link Revision: 1.1
- SDCI STANDARD IEC 61131-9 CDV
- Transmission type IO-Link: COM2 (38.4 kBaud)
- Repeatability ± (0.4% MW + 0.1% MEW)
- Application: For industrial use
- Resolution [ft/s]: 0.2
- Resolution [ssh]: 2
- Resolution [scfm]: 0.05
- Resolution - Pressure Monitor [psi]: 1
- Resolution - temperature monitoring [°C]: 0.2
- Resolution - temperature monitoring [°F]: 0.5
- Short-circuit protection version: Synchronised
- Output function: NO/NC contact; (can be parameterized)
- Output signal: Switching signal; analog signal; pulse signal; IO-Link; (configurable)
- Required master port class: A
- Standby delay time [s]: 1
- Operating voltage [V]: 18...30 DC; (according to SEL/PEL)
- Damping process value DAP [s]: 0...5
- Continuous current carrying capacity of the switching output DC [mA]: 150; (per output)
- Pressure equipment directive: Good engineering practice; suitable for stable gases of the fluid group 2
- Inputs: Counter reset
- Electrical version: PNP/NPN
- Accuracy - temperature monitoring [K]: ± 0.5; (for media flow within the limits of the flow measuring range)
- Accuracy (in measurement range): ± (6% MW + 0.6% MEW)
- Weight [g]: 742,500
- Largest TK of range - Pressure monitoring [% MEW / 10 K]: ± 0.3
- Largest TC of the zero point - Pressure monitoring [% MEW / 10 K]: ± 0.1
- Pulse output: Consumption meter
- Pulse rating - Flow rate monitoring [m³]: 0.001...10000000
- Pulse rating - Flow rate monitoring [SCF]: 0.05...353146667.2
- In steps of - Pressure Monitoring [psi]: 1
- In steps of - flow rate monitoring [m³]: 0.0001
- In steps of - Flow rate monitoring [SCF]: 0.005
- In steps of - temperature monitoring [°C]: 0.1
- In steps of - temperature monitoring [°F]: 0.1
- Characteristic curve deviation - Pressure monitoring: < ± 0.5; (BFSL = Best Fit Straight Line (minimum value setting))
- Communication interface: IO-Link
- Short-circuit protection: Yes
- Storage temperature [°F]: -4...185
- MAWP for applications according to CRN [bar]: 9.7
- Max. Burden [Ω]: 500
- max. Voltage drop switch output DC [V]: 2.5
- Max. Permissible relative humidity [%]: 90
- Media: Argon (Ar); Carbon dioxide (CO2); Nitrogen (N2); Operating compressed air
- Medium temperature [°F]: 14...140
- Measuring range [ft/s]: 1...327.4
- Measuring range [ssch]: 8...2648
- Measuring range [scfm]: 0.15...44.15
- Measuring range - pressure monitoring [psi]: -15...232
- Measuring range - Flow rate monitoring [m³]: 0...100000000
- Measuring range - Flow rate monitoring [SCF]: 0...353146667.2
- Measuring range - temperature monitoring [°C]: -10...60
- Measuring range - temperature monitoring [°F]: 14...140
- Min Burst pressure [psi]: 928
- Min Process cycle time [ms]: 7.2
- MTTF: 183
- Parameterization options: Hysteresis/window; NO/NC; current/pulse output; display rotatable / switchable; display unit; totalizer
- Profiles: Digital Measuring Sensor (0x800A), Identification and Diagnosis (0x4000)
- Process connection: Threaded connection 1/2" NPT DN15
- Analogue process data: 8
- Binary process data: 2
- Return point RP [ft/s]: 1.2...325.7
- Return point RP [ssh]: 10...2635
- Return point RP [scfm]: 0.16...43.91
- Return point RP - Pressure monitoring [psi]: -15...231
- Return point RP - temperature monitoring [°C]: -10...59.7
- Return point RP - temperature monitoring [°F]: 14...139.4
- Switching point SP [ft/s]: 2.8...327.3
- Switching point SP [ssh]: 23...2648
- Switching point SP [scfm]: 0.38...44.13
- Switching point SP - pressure monitoring [psi]: -13...232
- Switching point SP - Flow rate monitoring [m³]: 0.001...10000000
- Switching point SP - Flow control [SCF]: 0.05...353146667.2
- Switching point SP - temperature monitoring [°C]: -9.7...60
- Switching point SP - temperature monitoring [°F]: 14.6...140
- LFC [ft/s] creep suppression: 0.4...3.5
- LFC [ssh] power suppression: 3...28
- LFC [scfm]: 0.05...0.47
- Increment [ft/s]: 0.1
- Increment [ssh]: 1
- Increment [scfm]: 0.01
- Protection class IP 65; IP 67
- Protection class III
- SIO mode: Yes
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Current consumption: < 80
- Temperature coefficient [1/K]: ± 0.07% MW
- Overload-proof: Yes
- Ambient temperature [°F]: 32...140
- Reverse polarity protection: Yes
- Materials in contact with the Medium: 1.4301 (stainless steel / 304); 1.4305 (stainless steel / 303); FKM; ceramic glass-passivated; PPS GF40; Al2O3 (ceramic); Acrylic
- Repeatability - Pressure monitoring: ± 0.2
- Product type
Industrial gas meter
- Type
SD6601
- Min. operating voltage
18 V DC
- Max. operating voltage
30 V DC
- Operating voltage
18 - 30 V DC
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
not relevant
