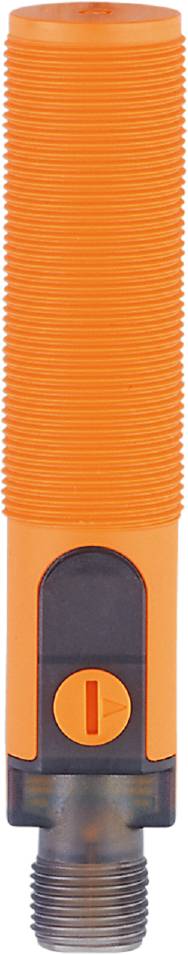

Buy ifm Electronic Sensor Capacitive KG5309 KG5309 M18 non-shielded PNP (Ø x L) 18 mm x 92.5 mm

Highlights & Details

Dimensions [mm]: M18 x 1 / L = 92.5
Display: Switch status 1 x LED, yellow
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...80
Tightening torque [Nm]: 8
Output function: Closer
Required master port class: A
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Built: Not flush-mounted
Electrical version: PNP
Housing: Threaded design
Weight [g]: 26,100
Thread name M18 x 1
Hysteresis: 1...15
IO-Link functions (acyclic): Application-specific marking; operating hours counter; NO/NC (parameterizable); PNP/NPN (configurable); switching point setting; hysteresis
Communication interface: IO-Link
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
Medium temperature [°C]: -25...110
Min Process cycle time [ms]: 20
MTTF: 1204
Profile: Smart sensor: Process data variable; device identification
Test mark (special cases): CCC
Real switching distance Sr [mm]: 15 ± 10 %
Switching distance [mm]: 0.5...30
Switching distance adjustable: Yes
Switching frequency DC [Hz]: 30
Switch point drift: -15...15
PROTECTION CLASS IP 65; IP 67; IP 69K
Protection class III
SIO mode: Yes
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 22
Overload-proof: Yes
Reverse polarity protection: Yes
Factory setting Switching distance [mm]: 15
