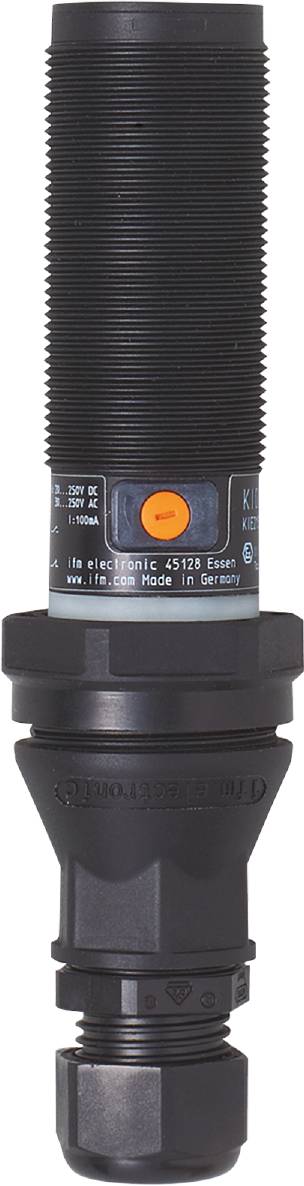

Inductive sensor by ifm electronic, model KIE086. Black with orange button. Manufactured in Essen, Germany.

Image similar

Product type

Sensor

Max. operating voltage

250 V DC

250 V AC

Contact type

1 breaker

1 maker

Switching distance (max.)

15 mm

Model

Capacitive

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm KI000A capacitive sensor

For applications in areas where there is a risk of explosion
With combined AC/DC output stage
Simply setting the switching distance using potentiometers
Two-wire technology
Output function NO / NC programmable

Technical specifications

Dimensions [mm] M30 x 1.5 / L = 150
Display: Switch status 1 x LED, yellow
Level measuring principle: Capacitive
Ambient temperature-1 [°C]: -20...60
ATEX Device Identification: II 3D Ex tc IIIC T90°C dc X.
Output function: NO / NC; (selectable)
OPERATING VOLTAGE [V]: 30...250 AC / 20...250 DC
Continuous current carrying capacity of switching output AC [mA]: 100; (150 (...40 °C)
Constant current carrying capacity of the switching output DC [mA]: 100; (150 (...40 °C)
Built: Not flush-mounted
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting; place the fuse outside the hazardous area.
Housing: Threaded design
Weight [g]: 150,000
Thread name M30 x 1.5
Hysteresis: 1...15
Connection / Terminals: Terminals: 0.34...2.5 mm²; cable jacket: Ø 5...9 mm; cable gland: M20 X 1.5
Correction factor (Glass): 0.4
Correction factor (ceramic): 0.2
Correction factor (PVC): 0.2
Correction factor (water): 1
Short-circuit-proof: No.
Short-term current carrying capacity of the switching output [mA]: 1000; (20ms / 0.5Hz)
Max. RESIDUAL CURRENT [MA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
max. Voltage drop switch output AC [V]: 10
max. Voltage drop switch output DC [V]: 8
Minimum load current [mA]: 5
MTTF: 305
Real switching distance Sr [mm]: 15 ± 10 %
Switching distance [mm]: 15
Switching distance adjustable: Yes
Switching frequency AC [Hz]: 10
Switching frequency DC [Hz]: 10
Switch point drift: -20...20
Protection class IP 65; IP 67
Protection class: II
Overload-proof: No.
Polarity reversal protected: Yes
Factory setting Switching distance [mm]: 15
