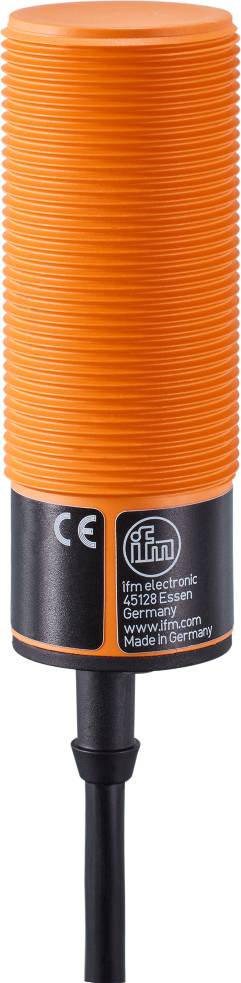

Buy ifm Electronic Sensor Capacitive KI0207 KI0207 M30 non-shielded (Ø) 30 mm

Image similar

Product type

Sensor

Max. operating voltage

250 V DC

250 V AC

Contact type

1 breaker

Switching distance (max.)

15 mm

Model

Capacitive

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm capacitive sensor

Simply setting the switching distance using potentiometers
With combined AC/DC output stage
Two-wire technology
High noise immunity
Well visible indication of the switching state

Technical specifications

Dimensions [mm] M30 x 1.5
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...12.1
Ambient temperature-1 [°C]: -25...70
Output function: NC
OPERATING VOLTAGE [V]: 20...250 AC/DC
Continuous current carrying capacity of switching output AC [mA]: 200; (250 (...50 °C)
Constant current carrying capacity of the switching output DC [mA]: 200; (250 (...50 °C)
Built: Not flush-mounted
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
Increased immunity: Yes; (increased immunity to interference (for conducted HF))
Housing: Threaded design
Weight [g]: 126,500
Thread name M30 x 1.5
Hysteresis: 1...15
Cable: Plug - cables: 0.1 m, PVC; 2 x 0.5 mm²
Correction factor (Glass): 0.4
Correction factor (ceramic): 0.2
Correction factor (PVC): 0.2
Correction factor (water): 1
Short-circuit-proof: No.
Short-term current carrying capacity of the switching output [mA]: 1500; (20 ms / 0.5 Hz)
Max. RESIDUAL CURRENT [MA]: 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC)
max. Voltage drop switch output AC [V]: 10
max. Voltage drop switch output DC [V]: 8
Minimum load current [mA]: 5
MTTF: 302
Real switching distance Sr [mm]: 15 ± 10 %
Switching distance [mm]: 3...15
Switching distance adjustable: Yes
Switching frequency AC [Hz]: 25
Switching frequency DC [Hz]: 50
Switch point drift: -15...15
Protection system: IP 65
Protection class: II
Plug connection: Plug - pin layout: 0049 - plug connector: 1 x 1/2"; code: C
Overload-proof: No.
Reverse polarity protected: No.
Factory setting Switching distance [mm]: 15
