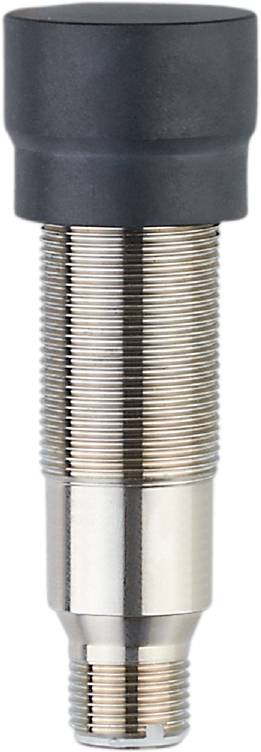

A silver cylindrical metal object, presumably a sensor or switch, with fine grooves across its entire surface.

Image similar

Product type

Sensor

Max. operating voltage

30 V DC

Contact type

2 makers

Outputs

PNP

Model

Inductive

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm GG714S Inductive Safety Sensor

EN 60947-5-3, IEC 61508 and ISO 13849 certified
Special actuator not required for electronic safety sensors
Connection to safety PLC, safe AS-i modules or safe evaluation units

Technical specifications

Dimensions [mm]: M18 x 1 / L = 71.5
Ambient temperature-1 [°C]: -40...70
Application: Industrial application
2 x OSSD (A1 and A2)
Output characteristics: Interface type C class 1
Output voltage at 24 V: Compatible with EN 61131-2 inputs type 1, 2
Rated insulation voltage [V]: 30
Special feature: Gold-plated contacts
Operating mode: Continuous operation (maintenance-free)
Operating voltage [V]: 19.2... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Built: Not flush-mounted
Electrical version: PNP
Release zone [mm]: 0...6.5
Duration of use TM (Mission Time) [h]: ≤ 87600
Housing: Threaded design
Safe cut-off distance s(ar) [mm]: 11
Weight [g]: 130,000
Thread name M18 x 1
Ionizing radiation: Not permitted
Short-circuit protection: Yes
Air pressure [kPa]: 80...106
Max. Standby delay time [ms]: 1000
Max. Height above NN [m]: 2000
Max. Capacity load CL_max [nF]: 20
max. Voltage drop switch output DC [V]: 2.5; (30 mA)
Max. Permissible relative humidity [%]: Short-term: 5...95 ; permanent: 5...70
PFH [1/h]: 1.0E-07
Response time to safety request [ms]: 1
Response time when approaching the release zone [ms]: 1
Risk Time (Error Response Time) [ms]: 20
Salt spray IEC 60068-2-52
Protection: IP 65; IP 67; IP 69K; (with ifm socket screwed in accordance with regulations)
Protection class III
Safety-related function: Safe state in case of damping
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A; body of handles: PPS GF40; contacts: Gold-plated
Current consumption: < 30
Temperature change rate [K/min]: 0.5
Overload-proof: No.
UV-RAYS DIN ISO 4892-1, DIN ISO 4892-2
Reverse polarity protection: Yes
