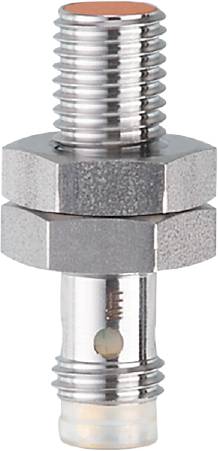

Buy ifm Electronic Sensor Inductive IE5366 IE5366 M8 shielded PNP (Ø x L) 8 mm x 30 mm

Highlights & Details

Dimensions [mm]: M8 x 1 / L = 30
Display: Switch status 4 x LED, yellow
Working distance [mm]: 0...1.62
Ambient temperature-1 [°C]: -25...70
Tightening torque [Nm]: A = 5 mm: 2 ; B = 5
Output function: Closer
Special feature: Gold-plated contacts; increased switching distance
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Flush mounting type: Flush mounting
Electrical version: PNP
Embedded software included: Yes
Increased switching distance: Yes
Housing: Threaded design
Weight [g]: 13,200
Thread name M8 x 1
Hysteresis: 1...20
Correction factor (Al): 0.4
Correction factor (Cu): 0.3
Correction factor (Ms): 0.5
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
MTTF: 1462
Test mark (special cases): CCC
Real switching distance Sr [mm]: 2 ± 10 %
Switching distance [mm]: 2
Switching frequency DC [Hz]: 800
Switch point drift: -10...10
IP 65; IP 67; (with properly screwed ifm socket)
Protection class III
Plug connection: Plug - pin layout: 0059 - plug connection: 1 x M8; coding: A; contacts: Gold-plated
Current consumption: < 10
Overload-proof: Yes
Reverse polarity protection: Yes
