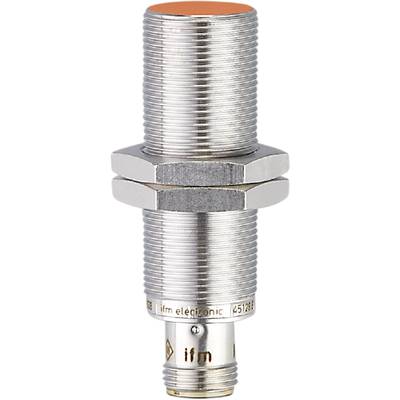

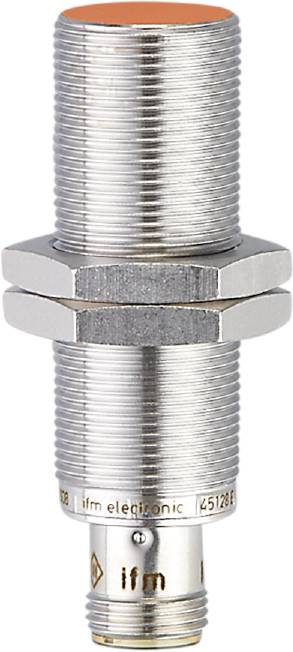

Buy ifm Electronic Sensor Inductive IG7100 IG7100 M18 x 1 shielded PNP

Image similar

Product type

Sensor

Max. operating voltage

30 V DC

Contact type

1 maker

Switching distance (max.)

5 mm

Outputs

PNP

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm]: M18 x 1 / L = 60
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...4.05
Ambient temperature-1 [°C]: -25...70
Output function: Closer
Special feature: Gold-plated contacts
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Flush mounting type: Flush mounting
Electrical version: PNP
Embedded software included: No.
Housing: Threaded design
Weight [g]: 48,400
Thread name M18 x 1
Hysteresis: 3...15
Correction factor (Al): 0.4
Correction factor (Cu): 0.3
Correction factor (Ms): 0.5
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
MTTF: 1134
Test mark (special cases): CCC
Real switching distance Sr [mm]: 5 ± 10 %
Switching distance [mm]: 5
Switching frequency DC [Hz]: 400
Switch point drift: -10...10
IP 67 protection
Protection class III
Plug connection: Plug - pin layout: 0061 - plug connection: 1 x M12; coding: A; contacts: Gold-plated
Current consumption: < 10
Overload-proof: Yes
Reverse polarity protection: Yes
