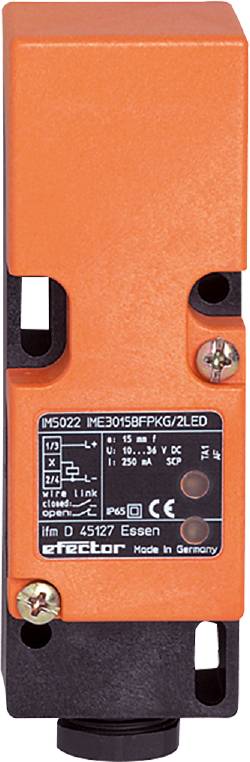

Image similar
ifm Electronic Sensor Inductive IM0011 IM0011 40 x 40 mm shielded (L x W x H) 121 x 40 x 40 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
250 V DC
250 V AC
Contact type
1 breaker
1 maker
Switching distance (max.)
15 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Ifm IM0011 Inductive Sensor
- High operating distance for use in conveyor systems
- With combined AC/DC power amplifier and two-wire technology
- Output function NO / NC programmable
- Robust housing for use in rough industrial environment
- Large operating voltage range
Technical specifications
- Dimensions [mm] 40 x 40 x 120
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...12.1
- Ambient temperature-1 [°C]: -25...80
- Output function: NO / NC; (selectable)
- OPERATING VOLTAGE [V]: 20...250 AC/DC
- Continuous current carrying capacity of switching output AC [mA]: 250; (350 (...50 °C)
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Flush mounting type: Flush mounting
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
- Housing: Square
- Weight [g]: 188,500
- Hysteresis: 1...15
- Connection / Terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 7...13 mm; cable gland: M20 X 1.5
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit-proof: No.
- Short-term current carrying capacity of the switching output [mA]: 2200; (20 ms / 0.5 Hz)
- Max. RESIDUAL CURRENT [MA]: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
- max. Voltage drop switch output AC [V]: 6.5
- max. Voltage drop switch output DC [V]: 6
- Minimum load current [mA]: 5
- MTTF: 603
- Real switching distance Sr [mm]: 15 ± 10 %
- Switching distance [mm]: 15
- Switching frequency AC [Hz]: 20
- Switching frequency DC [Hz]: 55
- Switch point drift: -10...10
- Protection system: IP 65
- Protection class: II
- Overload-proof: No.
- Reverse polarity protected: No.
- Product type
Sensor
- Type
IM0011
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
15 mm
- Enclosure material
PPE
- Model
Inductive
- Installation type
shielded
- Size
40 x 40 mm
- Connector
Clip
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP65
- Length
121 mm
- Width
40 mm
- Height
40 mm
- Dim
(L x W x H) 121 x 40 x 40 mm
- Content
1 pc(s)
- Switching frequency
20 Hz
- Weight
0.19
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319208 ifm Electronic Sensor Inductive IM0011 IM0011 40 x 40 mm shielded (L x W x H) 121 x 40 x 40 mm
User & Safety Instructions
User & Safety Instructions 3319208 ifm Electronic Sensor Inductive IM0011 IM0011 40 x 40 mm shielded (L x W x H) 121 x 40 x 40 mm
Description
Ifm IM0011 Inductive Sensor
