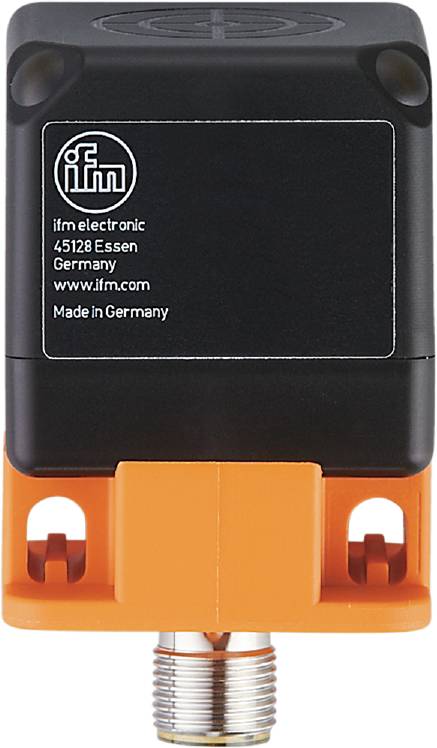

Name: ifm Electronic Sensor Inductive IM5142 IM5142 non-shielded PNP, NPN (L x W x H) 40 x 40 x 54 mm
Brand: ifm Electronic
SKU: 3319203

Highlights & Details

Ifm IM5142 Inductive Sensor

Contact-free measurement of distances up to 26 mm
Precise, linearized voltage output
High operating temperature range
High repeat accuracy
LED-display for monitoring the working area and operation

Technical specifications

Dimensions [mm] 40 x 40 x 54
Active surface: Can be aligned in 5 positions
Analog output voltage [V]: 0...10; (linear; slope: 0.4 /mm; with frontal approach and target of steel (ST37): 90 x 90 x 1 mm)
Response time [ms]: < 20
Display: Target in range: 1 x LED, yellow; target out of range: 1 x LED, flashing yellow; operation: LED, green
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...80
Output function: NO/NC contact; (can be parameterized)
Required master port class: A
Operating voltage [V]: 15... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Built: Not flush-mounted
Electrical design: PNP/NPN; (parameterizable)
Embedded software included: Yes
Housing: Square
Weight [g]: 157,000
Hysteresis: 3...15
IO-Link functions (acyclic): Switching cycle counter; on-cycle counter; operating hours counter; internal temperature; application-specific marking
Communication interface: IO-Link
Correction factor (Al): 0.4
Correction factor (Cu): 0.3
Correction factor (Ms): 0.4
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
Analog output linearity error [%]: ± 2; (of measuring range end value)
max. Voltage drop switch output DC [V]: 2.5
Measuring range [mm]: 1...26
Min Load resistance [Ω]: 2000
Min Process cycle time [ms]: 3.2
MTTF: 231
Profile: Smart sensor: Identification and diagnosis; multi-channel, two setpoint switching sensor, type 0 generic profiled sensor; teach channel
Switching frequency DC [Hz]: 100
Switch point IO-Link [mm]: 3.44...24.2
IP 67 protection
Protection class: II
SIO mode: Yes
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 33
Temperature drift: ± 5 %; (from end-of-range value)
Temperature coefficient [%/K of MEW]: ±0.15
Overload-proof: Yes
Reverse polarity protection: Yes
Repeatability Analogue output [%]: ± 2; (from end-of-range value)
