Buy ifm Electronic Sensor Inductive IN507A IN507A PNP

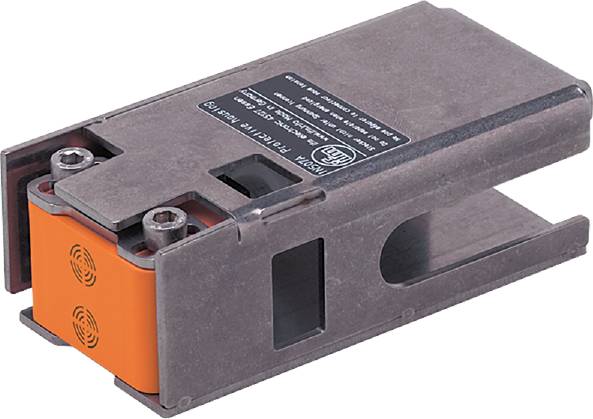

Image similar

Product type

Sensor

Max. operating voltage

30 V DC

Contact type

2 makers

Switching distance (max.)

4 mm

Outputs

PNP

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 40 x 26 x 47
Display: Switch status 2 x LED, yellow
Ambient temperature-1 [°C]: -20...60
Puck operating distance [mm]: 1
ATEX Device Identification: II 3D Ex tc IIIC T80°C Dc IP67 X; II 3G Ex nA IIC T6 GC X
Short-circuit protection version: Synchronised
Output function 2 x closer
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Square
Weight [g]: 341,500
Hysteresis: 1...15
Correction factor (Al): 0.4
Correction factor (Cu): 0.3
Correction factor (Ms): 0.5
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
Short-term current carrying capacity of the switching output [mA]: 100
max. Voltage drop switch output DC [V]: 2.5
MTTF: 1064
Switching distance [mm]: 4
Switching frequency DC [Hz]: 1300
Switch point drift: -10...10
IP 67 protection
Protection class III
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A; grip body: Stainless steel
Current consumption: < 15
Overload-proof: Yes
Reverse polarity protection: Yes
