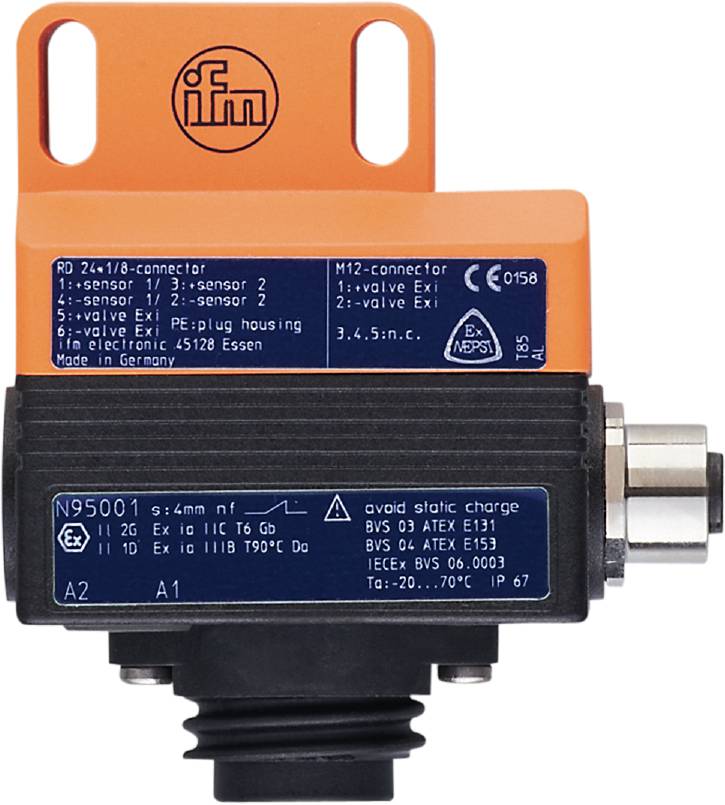

Buy ifm Electronic Sensor Inductive N95001 N95001 non-shielded NAMUR

Image similar

Product type

Sensor

Contact type

2 breakers

Switching distance (max.)

4 mm

Outputs

NAMUR

Model

Inductive

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm] 40 x 26 x 60
Connection to switching amplifier: Yes
Display: Switch status 2 x LED, yellow
Ambient temperature-1 [°C]: -20...70
Application: For standard actuators with standard mounting according to ISO 5211 (VDI/VDE)
ATEX Device Identification: II 2G Ex ia IIC T6 GB Ta -20...70°C; II 2G Ex ia IIC T5 GB Ta -20...80°C; II 1D Ex ia IIIB T20090°C Da Ta: -20...70°C; II 1D Ex ia IIIB T200100° C Da Ta: -20...80°C.
Output function 2 x NC
Built: Not flush-mounted
Electrical version: NAMUR
Housing: Square
Weight [g]: 175,000
Hysteresis: 1...15
Correction factor (Al): 0.4
Correction factor (Cu): 0.3
Correction factor (Ms): 0.5
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Max. Self-inductance [µH]: 150; (per intrinsically safe circuit)
Max. Own capacity [nF]: 150; (the intrinsically safe circuit)
MTTF: 1232
Rated voltage DC [V]: 8.2; (1kΩ)
Real switching distance Sr [mm]: 4 ± 10 %
Switching distance [mm]: 4
Switching frequency DC [Hz]: 250
Switch point drift: -10...10
Switching amplifier: Connection to certified intrinsically safe circuits with the highest values: U = 15 V / I = 50 mA / P = 120 mW
Shock/vibration exposure 30 g (11 ms) / 10-55 Hz (1 mm)
IP 67 protection
Protection class III
Plug connection: Socket - pin layout: 0017 - plug connection: 1 x M12; coding: A / plug - pin layout: 0077 - plug connection: RD24; code: A
Power consumption [mA]: < 1; (blocking; conductive: > 2.2)
APPROVAL: BVS 03 ATEX E 131 X; BVS 04 ATEX E 153 X; IECEX BVS 06.0003X
