Buy ifm Electronic SN0152 Flow meter signal processor SN0152 1 pc(s)

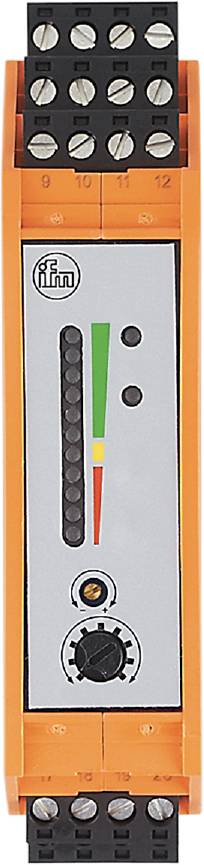

'Painting with geometric forms: Orange-white border, black circles, vertical stripes in green, red, black and yellow.'

Image similar

Product type

Flow meter signal processor

Type

SN0152

Min. operating voltage

90 V AC

Max. operating voltage

240 V AC

Operating voltage

90 - 240 V AC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm SN0152 flow sensor evaluation unit

For connecting flow sensors
Integrated flow, temperature and line monitoring
Adjustable switching outputs for monitoring the flow and temperature
Easy to read multi-color LED bar graph display
Signal output via potential-free relay contacts

Technical specifications

Dimensions [mm] 100 x 25 x 103.5
Response time [s]: < 3
Number of channels: 1
Display: Function: 11 x LED; switch state: LED, red; switch state: LED, red
Fault switching point adjustment: Potentiometer
Ambient temperature-1 [°C]: -20...60
Application: Flow monitoring; temperature monitoring; line monitoring
Range selection liquid / gaseous: Wire bridge; delivery condition: Monitoring of liquid media.; for monitoring gaseous media: Bridges terminals 23 / 24.
Standby delay time [s]: 10...80; (adjustable (grease resistance terminals 22-23))
Operating voltage [V]: 90...240 AC
Operating voltage tolerance [%]: -5...10
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
Frequency AC [Hz]: 47...63
Housing: Terminal rail housing
Weight [g]: 248,000
Field attachable connection / terminals: COMBICON plug:
CONTACT RATING 4 A (250 V AC / 30 V DC)
Short-circuit-proof: No.
Max. Power consumption [VA]: 4
MTTF: 168
Reproducibility of the set switching point [K]: 4
Switching function line monitoring: Relay drops off in the case of a cable break or short-circuit
Flow monitoring switching function: Relay is activated during flow and delay time
Switch function temperature monitoring: Relay switches off when the temperature is exceeded
Switching point adjustment Potentiometer
Protection class IP 20
Protection class: II
Temperature range [°C]: 40...120
Overload-proof: No.
Behaviour in the event of a fault: In the event of undervoltage, all relays will drop; LED "LOW VOLTAGE/WIRE BREAK RELAY" is lit
Reverse polarity protected: No.
