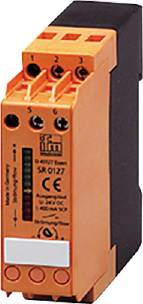

ifm Electronic SR0127 Flow meter signal processor SR0127 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow meter signal processor
Type
SR0127
Content
1 pc(s)
RoHS-compliant
Yes
UKCA
yes
Datasheet (PDF)
Highlights & Details
Ifm SR0127 Evaluation unit for current sensors
- For connecting flow sensors
- Integrated flow and line monitoring
- Intuitive setting of the switching point with the help of potentiometers
- Easy to read multi-color LED bar graph display
- Signal output via semiconductor contacts
Technical specifications
- Dimensions [mm] 78 x 22.5 x 100
- Number of channels: 1
- Display: Function 11 x LED
- Fault switching point adjustment: Potentiometer
- Ambient temperature-1 [°C]: 0...60
- Application: Flow monitoring
- Short-circuit protection version: Synchronised
- Standby delay time [s]: < 20
- Operating voltage [V]: 24 DC
- Operating voltage tolerance [%]: -10...10
- Continuous current carrying capacity of the switching output DC [mA]: 400
- Electrical version: PNP
- Housing: Terminal rail housing
- Weight [g]: 142,500
- Connection/terminals ready for assembly: Terminals: 12 x ...2.5 mm²
- Short-circuit protection: Yes
- Media: Liquid media
- MTTF: 624
- Switching function cable monitoring: Output switches OFF in case of wire break
- Switch function flow monitoring: Output switches ON in case of flow
- Protection class IP50
- Protection class IP 20 terminals
- Current consumption: < 45
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Flow meter signal processor
- Type
SR0127
- Content
1 pc(s)
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3320441 ifm Electronic SR0127 Flow meter signal processor SR0127 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3320441 ifm Electronic SR0127 Flow meter signal processor SR0127 1 pc(s)
Description
Ifm SR0127 Evaluation unit for current sensors
