Buy ifm Electronic SR0150 Flow meter signal processor SR0150 1 pc(s)

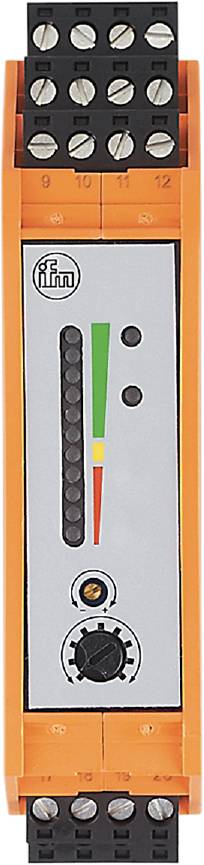

A vertical sequence of coloured stripes and dots, comprising two black circles, a green, a yellow, and an orange stripe.

Image similar

Product type

Flow meter signal processor

Type

SR0150

Min. operating voltage

19 V

Max. operating voltage

22 V

Operating voltage

19 - 22 V

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm SR0150 Evaluation unit for current sensors

For connecting flow sensors
Integrated flow, temperature and line monitoring
Adjustable switching outputs for monitoring the flow and temperature
Easy to read multi-color LED bar graph display
Signal output via potential-free relay contacts

Technical specifications

Dimensions [mm] 100 x 25 x 103.5
Response time [s]: < 3
Number of channels: 1
Display: Function: 11 x LED; switch state: LED, red; switch state: LED, red
Fault switching point adjustment: Potentiometer
Ambient temperature-1 [°C]: -20...60
Application: Flow monitoring; temperature monitoring; line monitoring
Range selection liquid / gaseous: Wire bridge; delivery condition: Monitoring of liquid media.; for monitoring gaseous media: Bridges terminals 23 / 24.
Standby delay time [s]: 10...80; (adjustable (grease resistance terminals 22-23))
Operating voltage [V]: 24 DC
Operating voltage tolerance [%]: -20...10
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
Housing: Terminal rail housing
Weight [g]: 237,500
Field attachable connection / terminals: COMBICON plug:
CONTACT RATING 4 A (250 V AC / 30 V DC)
Short-circuit-proof: No.
MTTF: 263
Reproducibility of the set switching point [K]: 4
Switching function line monitoring: Relay drops off in the case of a cable break or short-circuit
Flow monitoring switching function: Relay is activated during flow and delay time
Switching function temperature monitoring: The relay switches on when a temperature is exceeded
Switching point adjustment Potentiometer
Protection class IP 20
Protection class III
Current consumption: 90
Temperature range [°C]: 0...80
Overload-proof: No.
Behaviour in the event of a fault: In the event of undervoltage, all relays will drop; LED "LOW VOLTAGE/WIRE BREAK RELAY" is lit
Reverse polarity protected: No.
