Buy ifm Electronic SR0151 Flow meter signal processor SR0151 1 pc(s)

Graphic of a vertical bar chart with three coloured bars arranged side by side: black, green and red.

Image similar

Product type

Flow meter signal processor

Type

SR0151

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

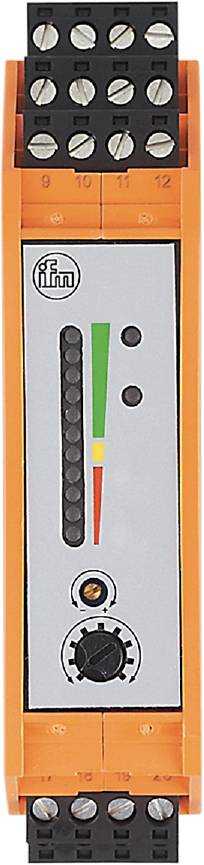

Ifm SR0151 Evaluation Unit for Flow Sensors

For connecting flow sensors
Integrated flow, temperature and line monitoring
Adjustable switching outputs for monitoring the flow and temperature
Easy to read multi-color LED bar graph display
Signal output via potential-free relay contacts

Technical specifications

Dimensions [mm] 100 x 25 x 103.5
Response time [s]: < 3
Number of channels: 1
Display: Function: 11 x LED; switch state: LED, red; switch state: LED, red
Fault switching point adjustment: Potentiometer
Ambient temperature-1 [°C]: -20...60
Application: Flow monitoring; temperature monitoring; line monitoring
Range selection liquid / gaseous: Wire bridge; delivery condition: Monitoring of liquid media.; for monitoring gaseous media: Bridges terminals 23 / 24.
Standby delay time [s]: 10...80; (adjustable (grease resistance terminals 22-23))
Operating voltage [V]: 24 DC
Operating voltage tolerance [%]: -20...10
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
Housing: Terminal rail housing
Weight [g]: 234,500
Field attachable connection / terminals: COMBICON plug:
CONTACT RATING 4 A (250 V AC / 30 V DC)
Short-circuit-proof: No.
MTTF: 263
Reproducibility of the set switching point [K]: 4
Switching function line monitoring: Relay drops off in the case of a cable break or short-circuit
Flow monitoring switching function: Relay is activated during flow and delay time
Switching function temperature monitoring: The relay switches on when a temperature is exceeded
Switching point adjustment Potentiometer
Protection class IP 20
Protection class III
Current consumption: 90
Temperature range [°C]: 40...120
Overload-proof: No.
Behaviour in the event of a fault: In the event of undervoltage, all relays will drop; LED "LOW VOLTAGE/WIRE BREAK RELAY" is lit
Reverse polarity protected: No.
