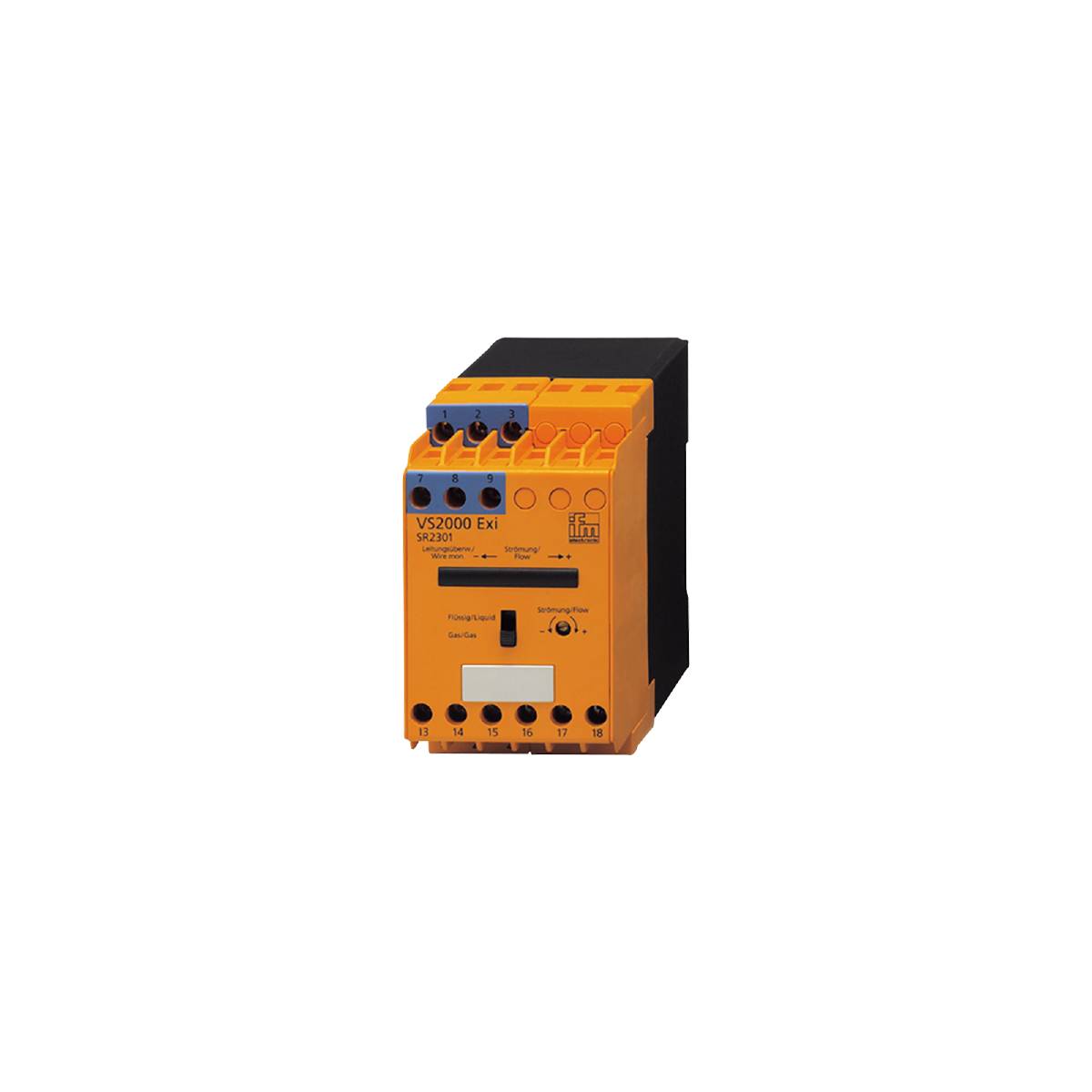

Name: ifm Electronic SR2301 Flow meter signal processor SR2301 1 pc(s)
Brand: ifm Electronic
SKU: 3321797

Image similar

Product type

Flow meter signal processor

Type

SR2301

Content

1 pc(s)

RoHS-compliant

Yes

UKCA

yes

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ifm SR2301 evaluation unit for current sensors

Dimensions [mm] 78 x 45 x 120
Number of channels: 1
Display: Function: 11 x LED; switch status: LED, red
Fault switching point adjustment: Potentiometer
Ambient temperature-1 [°C]: -20...60
Application: Flow monitoring; line monitoring
ATEX Device Identification: II (1) G [Ex ia Ga] IIC
Range selection liquid / gaseous: Slide switches
Standby delay time [s]: 30
Operating voltage [V]: 24 DC
Operating voltage tolerance [%]: -10...10
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting; place the fuse outside the hazardous area.
Housing: Terminal rail housing
Weight [g]: 352,500
Connection/terminals ready for assembly: Terminals: 15 x ...2.5 mm²
CONTACT RATING: 4 A (250 V AC COS PHI > 0.7) ; 0.2 A (250 V DC); 4 A (24 V DC)
Short-circuit-proof: No.
MTTF: 231
Switching function line monitoring: The relay switches off in the case of a wire break
Switching function flow monitoring: The relay attracts in case of flow
IP 40 protection
Protection class IP 20 terminals
Current consumption: 125
Overload-proof: No.
Reverse polarity protected: No.
PTB 01 ATEX 2075-3; IECEx PTB 07.0004
