Buy ifm Electronic SR5906 Flow meter signal processor SR5906 1 pc(s)

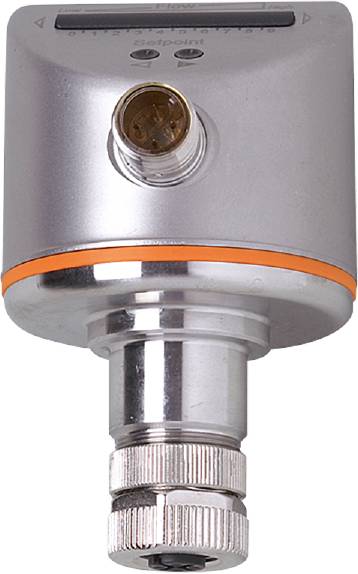

Image similar

Product type

Flow meter signal processor

Type

SR5906

Min. operating voltage

90 V AC

Max. operating voltage

240 V AC

Operating voltage

90 - 240 V AC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Number of channels: 1
Display: Function: LED, bar display; Switching status: LED, flash orange in case of wire break
Switching point compensation for interference: Buttons
Ambient temperature-1 [°C]: -20...60
Application: Flow monitoring; line monitoring
Standby delay time [s]: 10
Operating voltage [V]: 90...240 AC
Operating voltage tolerance [%]: -15...10
Electrical version: Relay
Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 5 A; quick-acting
Frequency AC [Hz]: 47...63
Weight [g]: 244,500
Contact rating: 3 A (250 V AC / 30 V DC); (switching cycles at 3 A Load: 100,000; type of switch-off: Closer)
Short-circuit protection: No.
Max. Power consumption [VA]: 3.5
MTTF: 209
Switching function flow monitoring: Output switches in case of current: ON with output function = closer / OFF with output function = opener
Switching operations (mechanical): 20_million
Protection class IP 67; (with attached sensor)
Protection class: II
Plug connection: Pin layout: 0093 - plug connector 1 x 1/2"; code: C
Overload-proof: No.
Reverse polarity protected: No.
