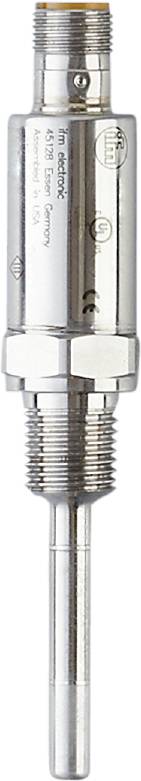

Buy ifm Electronic TA3603 TA3603 Temperature transmitter Analogue

Image similar

Product type

Temperature transmitter

Connector

M12

Type

TA3603

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Dimensions [mm]: Ø 18.8
Analog output current [mA]: 4...20
Response dynamics T05/T09 [s]: 1 / 3; (according to DIN EN 60751)
Number of analog outputs: 1
Number of inputs and outputs: Number of analog outputs: 1
1 x Pt 1000; (to DIN EN 60751, Class A)
Temperature coefficient percentage range: 0.1; (If the reference condition differs from 25 ± 5 °C)
Ambient temperature-1 [°C]: -40...100
Analog output resolution [K]: 0.04
Output signal: Analogue signal
Special feature: Gold-plated contacts
Operating voltage [V]: 10... 30 DC
Compressive strength [bar]: 400
Mounting length EL [mm]: 25
Analogue output accuracy [K]: ± 0.3 + (± 0.1 % MS)
Total number of outputs: 1
Weight [g]: 89,200
Short-circuit protection: Yes
Storage temperature [°C]: -40...100
Max. Load [Ω]: (Ub - 8.5 V) / 21.5 mA; 24 V: 720
Media: Liquid and gaseous media
Measuring range [°C]: -18...149
Measuring range [°F]: 0...300
MTTF: 1092
Process connection: Threaded connection 1/4" NPT
PROTECTION CLASS IP 68; IP 69K
Protection class III
Rod diameter [mm]: 6
Plug connection: Pin layout: 0180 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Current consumption: < 30
Overload-proof: Yes
Reverse polarity protection: Yes
Materials in contact with the Medium: 1.4404 (stainless steel / 316L)
