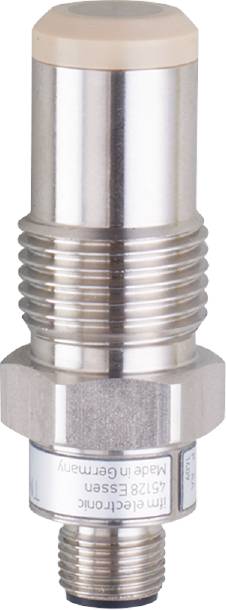

ifm Electronic TM4599 TM4599 Temperature sensor -50 up to 140 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Temperature reading range (min.)
-50 °C
Temperature reading range (max.)
140 °C
Connector
M12
IP rating
IP69
Datasheet (PDF)
Highlights & Details
Ifm TM4599 temperature sensor for connection to evaluation unit
- Hygienic and robust design
- Particularly space-saving design
- Secure sealing in the process
- Adapter for all common process connections
Technical specifications
- Response dynamics T05/T09 [s]: 10 / 40; (for water (70 °C; 0.04 m/))
- 1 x Pt 100; (to DIN EN 60751, Class A)
- Ambient temperature-1 [°C]: -20...70
- Tightening torque [Nm]: 10
- Special feature: Gold-plated contacts
- Compressive strength [bar]: 16
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 126,500
- Storage temperature [°C]: -40...100
- Media: Liquid and gaseous media
- Medium temperature [°C]: < 100; (< 5 min: 150)
- Measuring range [°C]: -50...140
- MTTF: 12683.9
- Process connection: Thread connection G 1/2 Sealing cone can be installed flush
- Protection type: IP 69K; (in conjunction with appropriate connector)
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L); PEEK
- Product type
Temperature sensor
- Type
TM4599
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
140 °C
- Temperature reading range
-50 up to 140 °C
- Connector
M12
- Enclosure material
PEEK
IP69
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319633 ifm Electronic TM4599 TM4599 Temperature sensor -50 up to 140 °C
User & Safety Instructions
User & Safety Instructions 3319633 ifm Electronic TM4599 TM4599 Temperature sensor -50 up to 140 °C
Description
Ifm TM4599 temperature sensor for connection to evaluation unit
