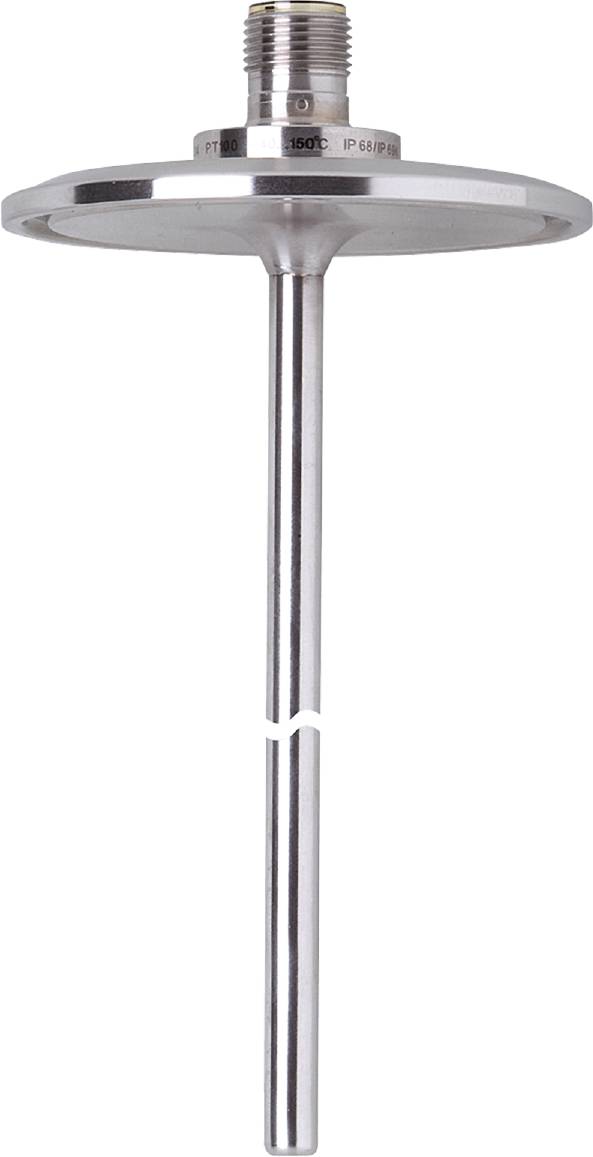

ifm Electronic TM4911 TM4911 PT100 Temperature sensor -40 up to 150 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT100
Temperature reading range (min.)
-40 °C
Temperature reading range (max.)
150 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TM4911 temperature sensor for connection to evaluation unit
- Precise temperature measurement in containers, tanks and pipelines
- For connection to an evaluation unit
- Very short response time for use in processes with fast temperature changes
- Hygienic design for the requirements of the food and beverage industry
- Variable process connection via adapter
Technical specifications
- Response dynamics T05/T09 [s]: 1 / 3; (according to DIN EN 60751)
- 1 x Pt 100; (to DIN EN 60751, Class A)
- Rod length value L [mm]: 50
- Ambient temperature-1 [°C]: -25...80
- Application: Hygiene area
- Special feature: Gold-plated contacts
- Compressive strength [bar]: 25
- Mounting length EL [mm]: 50
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 231,000
- Storage temperature [°C]: -40...100
- Media: Liquid and gaseous media
- Measuring range [°C]: -40...150
- Measuring range [°F]: -40...302
- Minimum immersion depth [mm]: 15
- MTTF: 22831
- Surface texture Ra/Rz of surfaces in contact with the media: Ra: < 0.8
- Process connection: Clamp DN50 (2") DIN 32676 (ISO 2852)
- PROTECTION CLASS IP 68; IP 69K
- Protection class III
- Rod diameter [mm]: 6
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L) electropolished
- Product type
Temperature sensor
- Type
TM4911
- Model
PT100
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
150 °C
- Temperature reading range
-40 up to 150 °C
- Connector
M12
- Enclosure material
Stainless steel
- Accuracy class
A
- Length
50 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 50 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319686 ifm Electronic TM4911 TM4911 PT100 Temperature sensor -40 up to 150 °C
User & Safety Instructions
User & Safety Instructions 3319686 ifm Electronic TM4911 TM4911 PT100 Temperature sensor -40 up to 150 °C
Description
Ifm TM4911 temperature sensor for connection to evaluation unit
