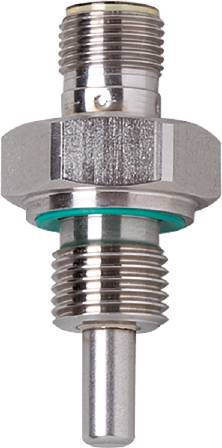

ifm Electronic TM5101 TM5101 PT1000 Temperature sensor -40 up to 150 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT1000
Temperature reading range (min.)
-40 °C
Temperature reading range (max.)
150 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TM5101 temperature sensor for connection to evaluation unit
- High accuracy across the entire temperature range
- High operating temperature range
- Especially good response dynamics and very short delay time
- Robust stainless steel housing with very high pressure strength
- High degree of protection for the requirements of mobile working machines
Technical specifications
- Response dynamics T05/T09 [s]: 1 / 3; (according to DIN EN 60751)
- 1 x Pt 1000; (to DIN EN 60751, Class A)
- Rod length value L [mm]: 12
- Ambient temperature-1 [°C]: -25...80
- Tightening torque [Nm]: 35
- Special feature: Gold-plated contacts
- Compressive strength [bar]: 400
- Mounting length EL [mm]: 25
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 45,700
- Storage temperature [°C]: -40...100
- Media: Liquid and gaseous media
- Measuring range [°C]: -40...150
- Measuring range [°F]: -40...302
- MTTF: 22831
- Process connection: Thread connection G 1/4
- PROTECTION CLASS IP 68; IP 69K
- Protection class III
- Rod diameter [mm]: 6
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L); FKM
- Product type
Temperature sensor
- Type
TM5101
- Model
PT1000
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
150 °C
- Temperature reading range
-40 up to 150 °C
- Connector
M12
- Enclosure material
Stainless steel
- Accuracy class
A
- Length
25 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 25 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3319110 ifm Electronic TM5101 TM5101 PT1000 Temperature sensor -40 up to 150 °C
Description
Ifm TM5101 temperature sensor for connection to evaluation unit
