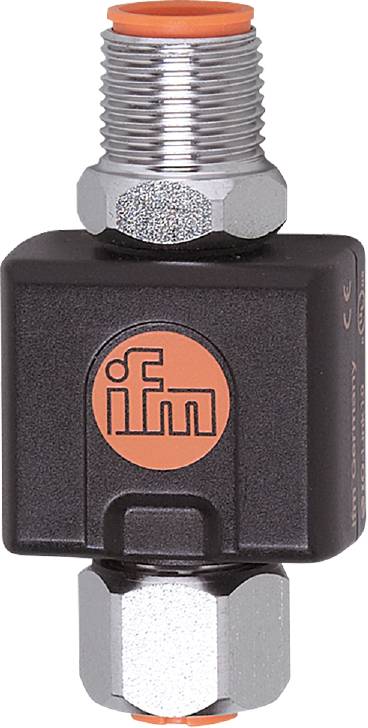

Buy ifm Electronic TP3237 Temperature sensor signal converter TP3237 1 pc(s)

Image similar

Product type

Temperature sensor signal converter

Type

TP3237

Min. operating voltage

20 V DC

Max. operating voltage

32 V DC

Operating voltage

20 - 32 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

For the signal evaluation of temperature sensors and resistance thermometers
Minimization of installation effort and error sources as compared to head transmitters
Automatic detection of the connected sensor type
Fully cast and robust connection technology for high vibration resistance
Precise analog output and convenient communication via IO-Link

Dimensions [mm] M12 x 1
Analog output current [mA]: 4...20
Number of analog outputs: 1
Number of inputs and outputs: Number of analog outputs: 1
IO-Link Revision: 1.0
Temperature coefficient Percentage range: 0.1
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -25...70
Factory setting measuring range 0...100 °C
Application: For Pt100 and Pt1000 measuring elements
Short-circuit protection version: Synchronised
Output signal: Analog signal; IO-Link; (configurable)
Standby delay time [s]: 1
Special feature: Gold-plated contacts
Operating voltage [V]: 20... 32 DC
Analogue output accuracy [K]: ± 0.3 + (± 0.1 % MS)
Total number of outputs: 1
Weight [g]: 41,000
Thread name M12 x 1
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -40...85
Max. Burden [Ω]: 300
Max. Measurement/display cycle time [ms]: 100
Measuring range [°C]: -50...300
Measuring range [°F]: -58...572
MTTF: 506
IP 67 protection
Protection class III
Plug connection: Pin layout: 0001 - Plug connection: 1 x M12; Coding: A; Grip body: TPU; Locking: 1.4404 (Stainless steel / 316L); Seal: FKM; Contacts: Gold-plated
Overload-proof: Yes
Reverse polarity protection: Yes
Watchdog integrated: Yes
Material seal: FKM
