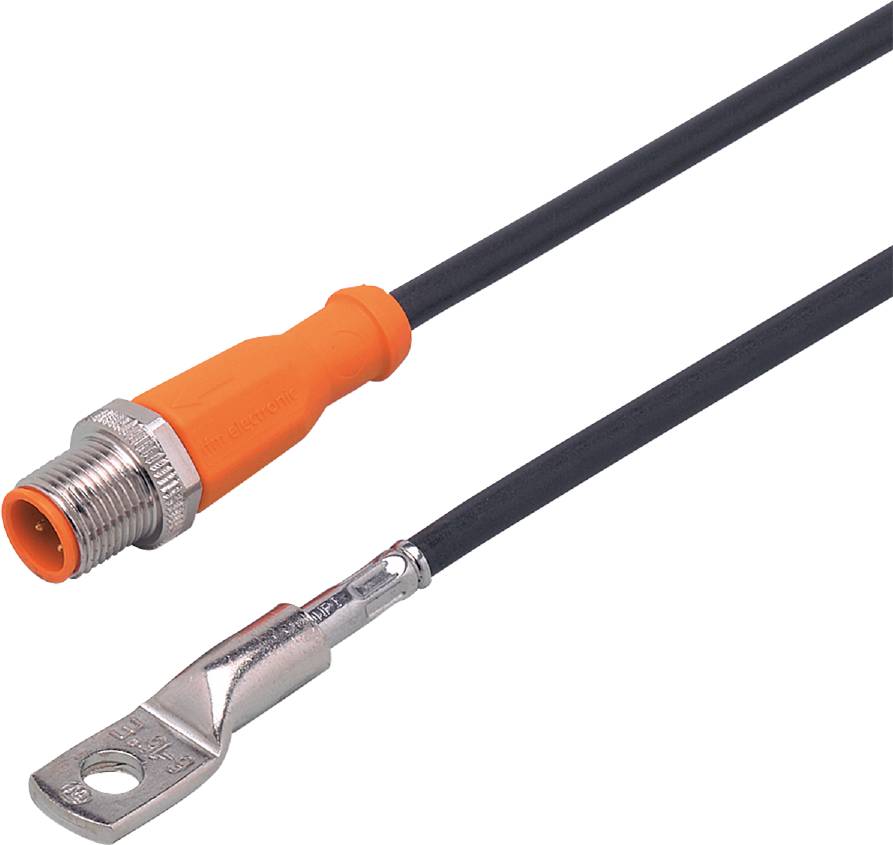

ifm Electronic TS2229 TS2229 PT100 Temperature sensor -40 up to 90 °C Connector clips
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT100
Temperature reading range (min.)
-40 °C
Temperature reading range (max.)
90 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TS2229 Temperature sensor for connection to evaluation unit
- Precise temperature measurement on machine surfaces
- For connection to an evaluation unit
- Compact design for installation in cramped spaces
- High accuracy across the entire temperature range
- Gold plated contacts for reliable electrical connections
Technical specifications
- Dimensions [mm] 12 x 8.7 x 51
- Response dynamics T05 / T09 [s]: 9 / 15; (values for flat aluminum surface (anodized), using heat transfer compound.; reference values for moving water: 10 / 24 (< 0.1 m/))
- 1 x Pt 100; (to DIN EN 60751, Class A)
- Special feature: Gold-plated contacts
- Housing: Wire sensor
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 88,500
- Insulation strength [V]: 2500; (Sensor housing against sensor interior construction)
- Cable: 2 m, PUR, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm)
- Measuring range [°C]: -40...90
- Measuring range [°F]: -40...194
- Mounting: Contact sensor for solid bodies
- MTTF: 11415.5
- Process connection: Sensor 12 x 8.7 x 51 mm
- IP 67 protection
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Product type
Temperature sensor
- Type
TS2229
- Model
PT100
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
90 °C
- Temperature reading range
-40 up to 90 °C
- Connector
M12
- Cable length
2 m
- Type
Connector clips
- Accuracy class
A
- RoHS-compliant
Yes
- Content
1 pc(s)
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318143 ifm Electronic TS2229 TS2229 PT100 Temperature sensor -40 up to 90 °C Connector clips
User & Safety Instructions
User & Safety Instructions 3318143 ifm Electronic TS2229 TS2229 PT100 Temperature sensor -40 up to 90 °C Connector clips
Description
Ifm TS2229 Temperature sensor for connection to evaluation unit
