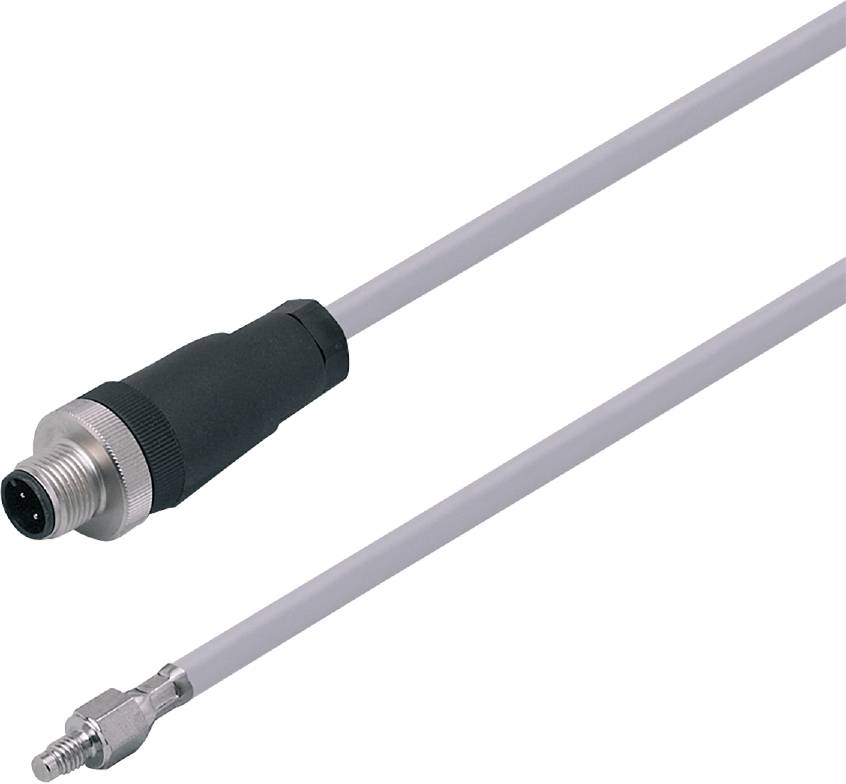

ifm Electronic TS2659 TS2659 PT100 Temperature sensor -30 up to 180 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT100
Temperature reading range (min.)
-30 °C
Temperature reading range (max.)
180 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TS2659 Temperature sensor for connection to evaluation unit
- Precise temperature measurement on machine surfaces
- For connection to an evaluation unit
- Compact design for installation in cramped spaces
- Large temperature measurement range
- Simple and absolutely tight connection thanks to M12 plug connection
Technical specifications
- Dimensions [mm]: M6
- Response dynamics T05/T09 [s]: 3 / 8; (according to DIN EN 60751)
- 1 x Pt 100; (to DIN EN 60751, Class A)
- Housing: Screw-in sensor
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 110,700
- M6 thread
- Cable: 2 m, silicone
- Measuring range [°C]: -30...180
- Measuring range [°F]: -22...356
- Mounting: Contact sensor for solid bodies
- MTTF: 10377.8
- Process connection: Threaded connection M6 external thread
- IP 67 protection
- Protection class III
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Product type
Temperature sensor
- Type
TS2659
- Model
PT100
- Temperature reading range (min.)
-30 °C
- Temperature reading range (max.)
180 °C
- Temperature reading range
-30 up to 180 °C
- Connector
M12
- Cable length
2 m
- Accuracy class
A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318902 ifm Electronic TS2659 TS2659 PT100 Temperature sensor -30 up to 180 °C
User & Safety Instructions
User & Safety Instructions 3318902 ifm Electronic TS2659 TS2659 PT100 Temperature sensor -30 up to 180 °C
Description
Ifm TS2659 Temperature sensor for connection to evaluation unit
