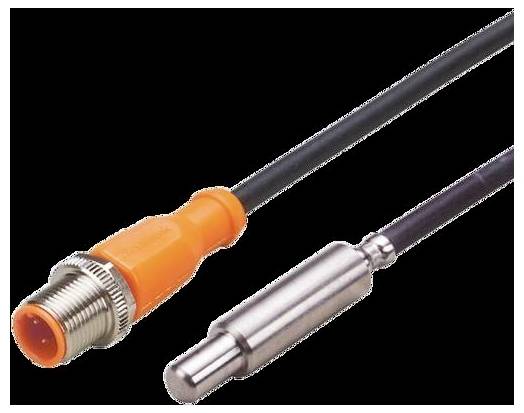

ifm Electronic TS5089 TS5089 PT100 Temperature sensor -40 up to 90 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT100
Temperature reading range (min.)
-40 °C
Temperature reading range (max.)
90 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TS5089 Temperature sensor for connection to evaluation unit
- Precise temperature measurement in containers, tanks and pipelines
- For connection to an evaluation unit
- Simple process adaptation using clamping screw or protective pipe
- High accuracy across the entire temperature range
- Simple and absolutely tight connection thanks to M12 plug connection
Technical specifications
- Dimensions [mm]: Ø 10
- Response dynamics T05/T09 [s]: 6 / 25; (according to DIN EN 60751)
- 1 x Pt 100; (to DIN EN 60751, Class A)
- Special feature: Gold-plated contacts
- Housing: Sensor
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 193,600
- Cable: 5 m, PUR
- Media: Liquid and gaseous media
- Measuring range [°C]: -40...90
- Measuring range [°F]: -40...194
- Minimum immersion depth [mm]: 15
- MTTF: 11415.5
- Process connection: Ø 10 mm
- IP 67 protection
- Protection class III
- Rod diameter [mm]: 10
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
- Materials in contact with the Medium: 1.4404 (stainless steel / 316L)
- Product type
Temperature sensor
- Type
TS5089
- Model
PT100
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
90 °C
- Temperature reading range
-40 up to 90 °C
- Connector
M12
- Cable length
5 m
- Enclosure material
Stainless steel
- Accuracy class
A
- (Ø)
10 mm
- Dim
(Ø) 10 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3318339 ifm Electronic TS5089 TS5089 PT100 Temperature sensor -40 up to 90 °C
User & Safety Instructions
User & Safety Instructions 3318339 ifm Electronic TS5089 TS5089 PT100 Temperature sensor -40 up to 90 °C
Description
Ifm TS5089 Temperature sensor for connection to evaluation unit
