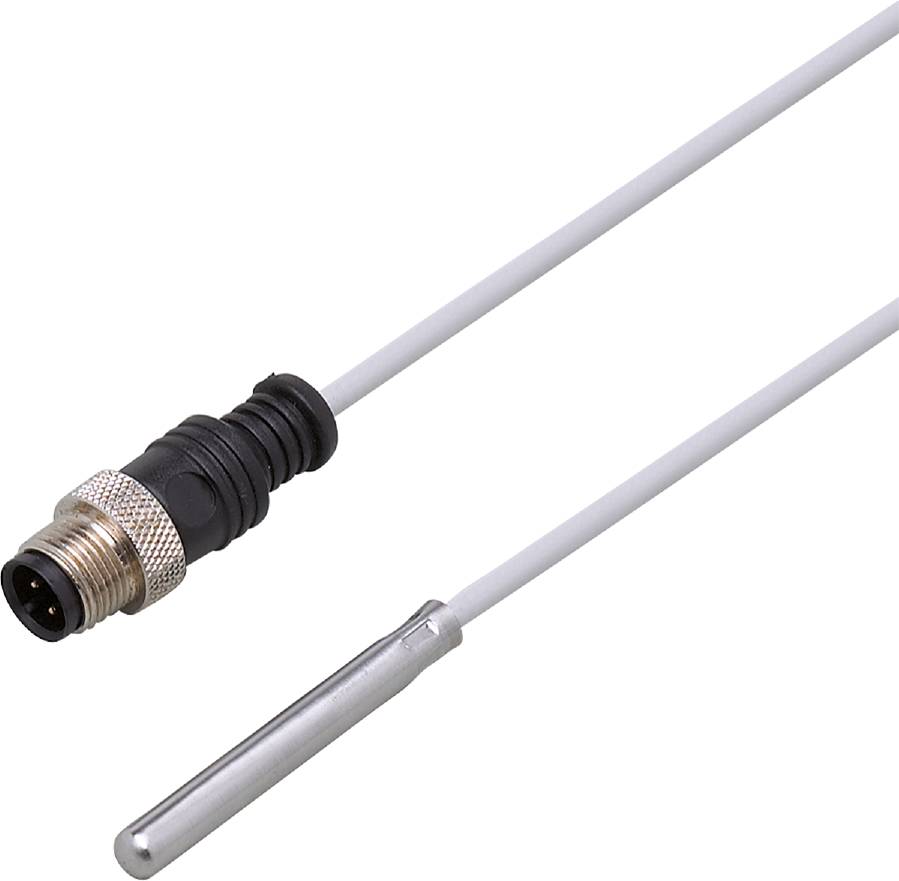

ifm Electronic TS9256 TS9256 PT1000 Temperature sensor -50 up to 250 °C
EAN:
Part number:
Item no:
Product type
Temperature sensor
Model
PT1000
Temperature reading range (min.)
-50 °C
Temperature reading range (max.)
250 °C
Connector
M12
Datasheet (PDF)
Highlights & Details
Ifm TS9256 temperature sensor for connection to evaluation unit
- Precise temperature measurement in containers, tanks and pipelines
- For connection to an evaluation unit
- Simple process adaptation using clamping screw or protective pipe
- Large temperature measurement range
- Simple and absolutely tight connection thanks to M12 plug connection
Technical specifications
- Dimensions [mm]: Ø 6
- Response dynamics T05/T09 [s]: 11 / 37; (according to DIN EN 60751)
- 1 x Pt 1000; (to DIN EN 60751, Class A)
- Rod length value L [mm]: 50
- Mounting length EL [mm]: 50
- Accuracy [K]: ± (0.15 + 0.002 x|t|)
- Weight [g]: 26,400
- Cable: 0.15 m, PTFE
- Media: Liquid and gaseous media
- Measuring range [°C]: -50...250
- Measuring range [°F]: -58...482
- Minimum immersion depth [mm]: 15
- MTTF: 11415.5
- Process connection: Ø 6 mm
- IP 67 protection
- Protection class III
- Rod diameter [mm]: 6
- Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Materials in contact with the Medium: 1.4571 (stainless steel / 316Ti)
- Product type
Temperature sensor
- Type
TS9256
- Model
PT1000
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
250 °C
- Temperature reading range
-50 up to 250 °C
- Connector
M12
- Cable length
0.15 m
- Enclosure material
Stainless steel V4A
- Accuracy class
A
- Length
50 mm
- (Ø)
6 mm
- Dim
(Ø x L) 6 mm x 50 mm
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3319074 ifm Electronic TS9256 TS9256 PT1000 Temperature sensor -50 up to 250 °C
User & Safety Instructions
User & Safety Instructions 3319074 ifm Electronic TS9256 TS9256 PT1000 Temperature sensor -50 up to 250 °C
Description
Ifm TS9256 temperature sensor for connection to evaluation unit
