Buy ifm Electronic TT5050 TT5050 PT1000 Temperature sensor -40 up to 150 °C

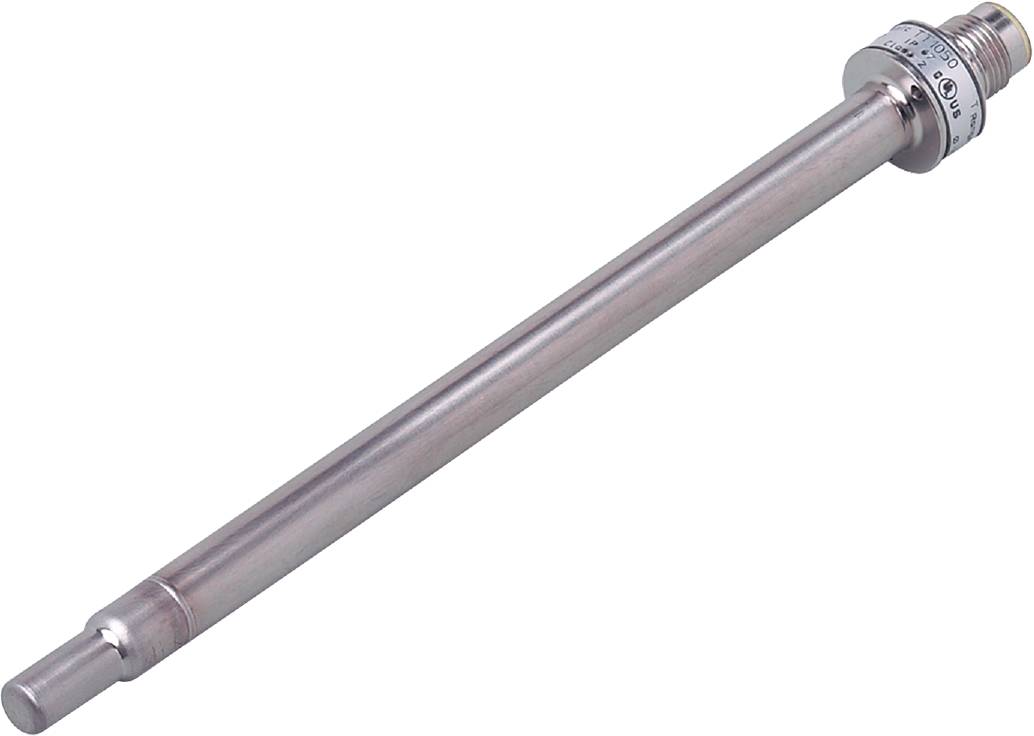

Image similar

Product type

Temperature sensor

Model

PT1000

Temperature reading range (min.)

-40 °C

Temperature reading range (max.)

150 °C

Connector

M12

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Precise temperature measurement in containers, tanks and pipelines
For connection to an evaluation unit
Very short response time for use in processes with fast temperature changes
Robust stainless steel housing with a high degree of protection and high pressure resistance
Variable process connection via adapter

Dimensions [mm]: Ø 10
Response dynamics T05/T09 [s]: 1 / 3; (according to DIN EN 60751)
1 x Pt 1000; (to DIN EN 60751, Class A)
Rod length value L [mm]: 560
Ambient temperature-1 [°C]: -25...80
Special feature: Gold-plated contacts
Compressive strength [bar]: 160
Mounting length EL [mm]: 560
Accuracy [K]: ± (0.15 + 0.002 x|t|)
Weight [g]: 147,300
Storage temperature [°C]: -40...100
Media: Liquid and gaseous media
Measuring range [°C]: -40...150
Measuring range [°F]: -40...302
Minimum immersion depth [mm]: 15
MTTF: 22831
Process connection: Ø 10 mm
PROTECTION CLASS IP 68; IP 69K
Protection class III
Rod diameter [mm]: 10
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; code: A; contacts: Gold-plated
Materials in contact with the Medium: 1.4404 (stainless steel / 316L)
