Buy ifm Electronic Ultrasonic switch Ultrasound M18 PNP UGT526

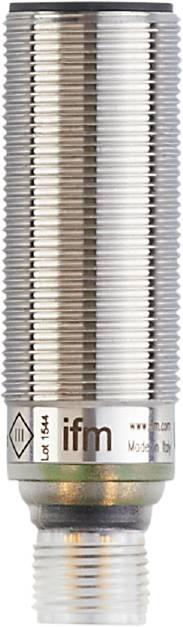

The image shows a close-up of a stacked metal thread, which suggests a technical component or a screw.

Image similar

Product type

Ultrasonic switch

Max. operating voltage

30 V DC

Outputs

PNP

Switching distance (max.)

1200 mm

Model

Ultrasound

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ifm UGT526 ultrasonic reflex vent

Output function NO / NC programmable
Highly visible LED for indication of switch status and echo
Non-contact detection, regardless of color, transparency or surface condition of the object
Particularly space-saving design for use in narrow installation spaces

Technical specifications

Dimensions [mm]: M18 x 1 / L = 60.5
Number of digital outputs: 1
Number of inputs and outputs: Number of digital outputs: 1
Display: Switch status: 1 x LED, yellow; echo: 1 x LED, green
IO-Link Revision: 1.1
SDCI standard IEC 61131-9
Transmission type IO-Link: COM2 (38.4 kBaud)
Ambient temperature-1 [°C]: -20...70
Tightening torque [Nm]: 50
Resolution [mm]: 1
Output function: NO/NC contact; (can be parameterized)
Required master port class: A
Standby delay time [s]: < 0.3
Operating voltage [V]: 10...30 DC; ("supply class 2" according to cULus)
Blind zone [mm]: 80
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Threaded design
Total number of outputs: 1
Weight [g]: 115,500
Thread name M18 x 1
Accuracy/Variance Notes: The specified values are reached after a warm-up time of at least 20 minutes
Hysteresis [%]: < 1
IO-Link functions (acyclic): Application-specific marking; operating hours counter
Communication interface: IO-Link
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Max. Deviation from 90° angle sensor / object [°]: ± 4
max. Voltage drop switch output DC [V]: 2.2
Min Process cycle time [ms]: 16
MTTF: 210
Multiplex input: No.
Opening angle cylindrical [°]: 14; (±2)
Parameterisation options: Hysteresis/window; second switch-point; switch-on and switch-off delay; switch-on processes; teach-function; Bright-/dark switching
Profile: Smart sensor: Device identification; multi-channel, two setpoint switching sensor, type 0 generic profiled sensor; process data variable; device diagnosis; teach channel
Switching distance [mm]: 80...1200; (Target: 200 x 200 )
Switching frequency DC [Hz]: 5
Switch point drift [%]: -2.5...2.5
IP 67 protection
Protection class III
SIO mode: Yes
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 35
Synchronisation input: No.
Temperature compensation: Yes
Overload-proof: Yes
Reverse polarity protection: Yes
Transformer frequency [kHz]: 200
Repeatability IO-Link [%]: < 0.7
