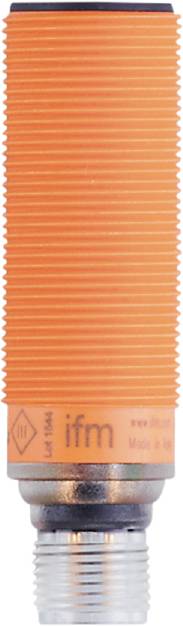

Name: ifm Electronic Ultrasonic switch Ultrasound M18 x 1 PNP UGT200
Brand: ifm Electronic
SKU: 3320284

Image similar

Product type

Ultrasonic switch

Max. operating voltage

30 V DC

Outputs

PNP

Switching distance (max.)

300 mm

Model

Ultrasound

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

Ifm UGT200 Ultrasonic reflex button

Particularly space-saving design for use in narrow installation spaces
Output function NO / NC programmable
Non-contact detection, regardless of color, transparency or surface condition of the object
Simple setting of the device functions with the help of programming cable
Highly visible LED for indication of switch status and echo

Dimensions [mm]: M18 x 1 / L = 60.5
Number of digital outputs: 1
Number of inputs and outputs: Number of digital outputs: 1
Display: Switch status: 1 x LED, yellow; echo: 1 x LED, green
Ambient temperature-1 [°C]: -20...70
Repeat accuracy 1 %
Tightening torque [Nm]: 1
Resolution [mm]: 2
Output function: NO/NC contact; (can be parameterized)
Standby delay time [s]: < 0.3
Operating voltage [V]: 10...30 DC; ("supply class 2" according to cULus)
Blind zone [mm]: 40
Continuous current carrying capacity of the switching output DC [mA]: 100
Electrical version: PNP
Housing: Threaded design
Total number of outputs: 1
Weight [g]: 56,000
Thread name M18 x 1
Accuracy/Variance Notes: The specified values are reached after a warm-up time of at least 20 minutes
Hysteresis [%]: < 1
Short-circuit protection: Yes
Storage temperature [°C]: -30...80
Max. Deviation from 90° angle sensor / object [°]: ± 4
max. Voltage drop switch output DC [V]: 2.2
MTTF: 202
Multiplex input: No.
Opening angle cylindrical [°]: 15; (±2)
Switching distance [mm]: 40...300; (Target: 200 x 200 )
Switching frequency DC [Hz]: 8
Switch point drift [%]: -5...5
IP 67 protection
Protection class III
Plug connection: Pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 35
Synchronisation input: No.
Temperature compensation: Yes
Overload-proof: Yes
Reverse polarity protection: Yes
Transformer frequency [kHz]: 300
