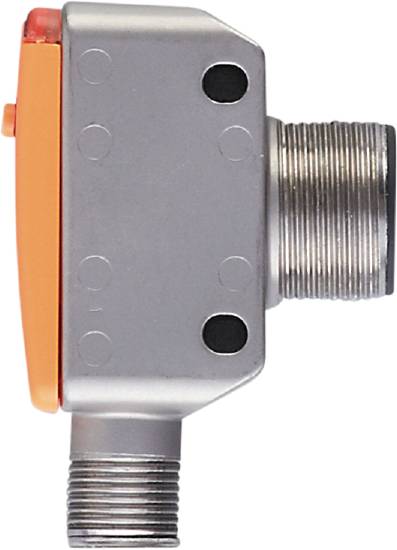

ifm Electronic Ultrasonic switch Ultrasound M18 x 1 PNP UGT585
EAN:
Part number:
Item no:
Product type
Ultrasonic switch
Max. operating voltage
30 V DC
Outputs
PNP
Switching distance (max.)
1200 mm
Model
Ultrasound
Datasheet (PDF)
Technical specifications
- Product type
Ultrasonic switch
- Type
UGT585
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP
- Switching distance (max.)
1200 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12
- Size
M18 x 1
- Enclosure material
Stainless steel V4A
IP67
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
37.7 mm
- Width
53 mm
- Height
37.7 mm
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 37.7 mm
- RoHS-compliant
Yes
- Depth
20 mm
- UKCA
yes
